Описание

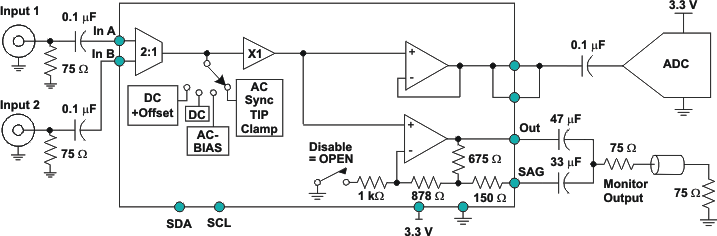

Fabricated using the revolutionary complimentary silicon-germanium (SiGe) BiCom3 process, the THS7347 is a low-power, single-supply 2.7-V to 5-V 3-channel integrated video buffer with horizontal (H) and vertical (V) sync signal paths. It incorporates a 500-MHz bandwidth, 1200-V/µs unity-gain buffer ideal for driving analog-to-digital converters (ADCs) and video decoders. In parallel with the unity-gain buffer, a monitor pass-through path allows for passing the input signal on to other systems. This path has a 6-dB gain, 500-MHz bandwidth, 1300-V/µs slew rate, SAG correction capability, and high output impedance while disabled. Each channel of the THS7347 is individually I2C-configurable for all functions, including controlling the 2:1 input mux. Its rail-to-rail output stage allows for both ac- and dc-coupling applications.

3-Video Amplifiers for CVBS, S-Video, EDTV, HDTV Y'P'_BP'_R, G'B'R', and R'G'B' Video
H/V Sync Paths with Adjustable Schmitt Trigger
2:1 Input Mux
I²C Control of All Functions on Each Channel
Unity-Gain Buffer Path for ADC Buffering:
- 500-MHz Bandwidth, 1200-V/µs Slew Rate
Monitor Pass-Through Function:
- 500-MHz Bandwidth, 1300-V/µs Slew Rate
- 6-dB Gain with SAG Correction Capable
- High Output Impedance in Disable State
Selectable Input Bias Modes:
- AC-Coupled with Sync-Tip Clamp
- AC-Coupled with Bias
- DC-Coupled with Offset Shift
- DC-Coupled
+2.7-V to +5-V Single-Supply Operation
Total Power Consumption: 265 mW at 3.3 V
Disable Function Reduces Current to 0.1 µA
Rail-to-Rail Output:
- Output Swings Within 0.1 V of the Rails, Allowing AC- or DC-Output Coupling
Lead-free, RoHS TQFP Package

Number of channels	3
Diff gain (%)	0.1
Iout (typ) (A)	0.08
Vs (min) (V)	2.7
Vs (max) (V)	5.5
Diff phase (°)	0.1
Iq (typ) (mA)	80
Number of filter poles	0
Features	I2C control method
Input mux configuration	2:1
Operating temperature range (°C)	-40 to 85
Rating	Catalog
