Описание

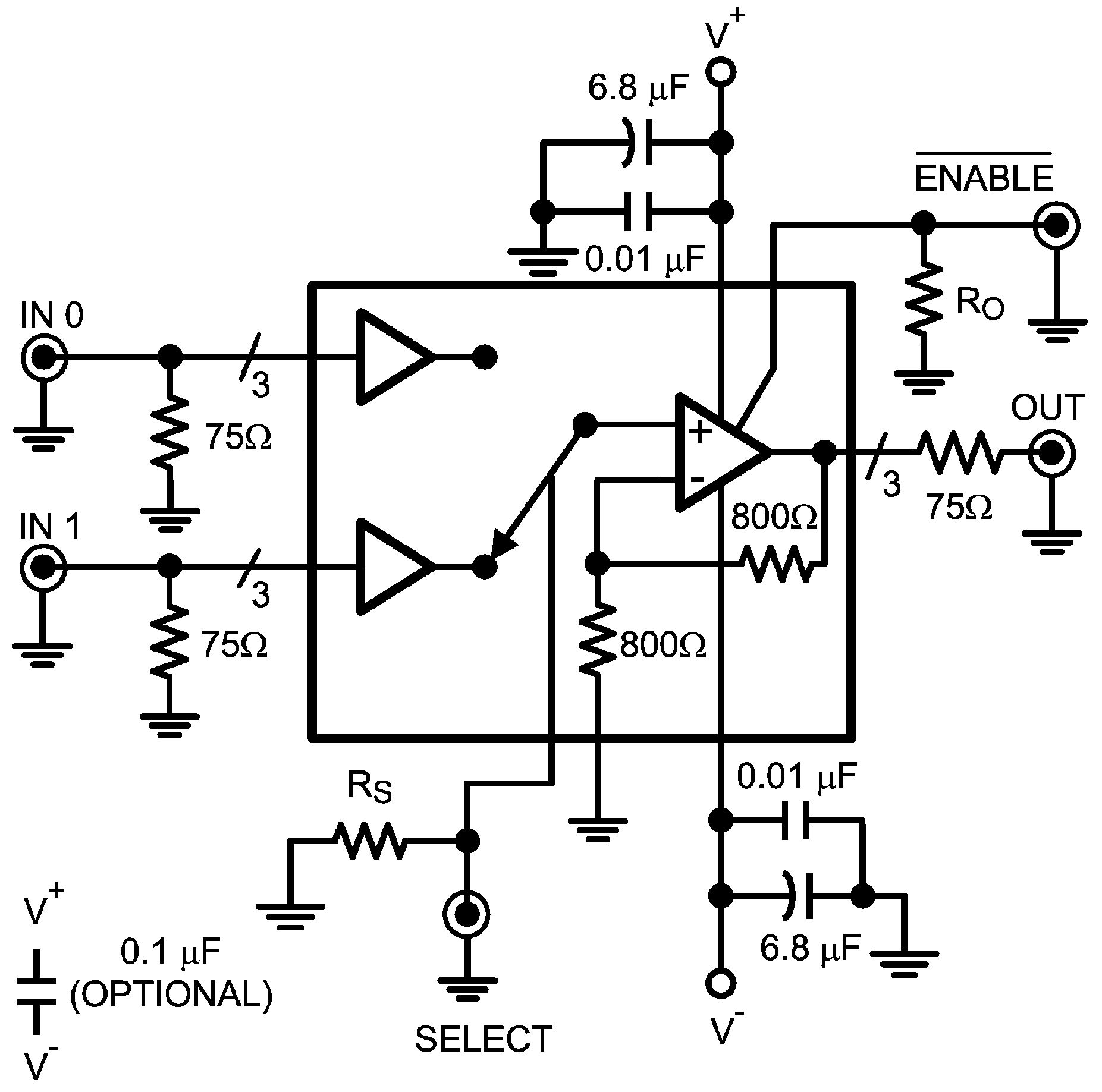

The LMH6572 is a high performance analog multiplexer optimized for professional grade video and other high fidelity, high bandwidth analog applications. The LMH6572 provides a 290-MHz bandwidth at 2-VPP output signal levels. The 140 MHz of 0.1-dB bandwidth and a 1500-V/µs slew rate make this part suitable for high definition television (HDTV) and high resolution multimedia video applications.The LMH6572 supports composite video applications with its 0.02% and 0.02° differential gain and phase errors for NTSC and PAL video signals while driving a single, back terminated 75-Ω load. The LM6572 can deliver 80-mA linear output current for driving multiple video load applications.The LMH6572 has an internal gain of 2 V/V (+6 dBv) for driving back terminated transmission lines at a net gain of 1 V/V (0 dBv).The LMH6572 is available in the SSOP package.

350-MHz, 250-mV, −3-dB Bandwidth
290-MHz, 2-V_PP, −3-dB Bandwidth
10-ns Channel Switching Time
90-dB Channel to Channel Isolation at 5 MHz
0.02%, 0.02° Diff. Gain, Phase
0.1-dB Gain Flatness to 140 MHz
1400-V/µs Slew Rate
Wide Supply Voltage Range:
6 V (±3 V) to 12 V (±6 V)
−78-dB HD2 at 10 MHz
−75-dB HD3 at 10 MHz

Architecture	Current FB
Number of channels	3
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	6
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	12
BW at Acl (MHz)	500
Acl, min spec gain (V/V)	1
Slew rate (typ) (V/µs)	1400
Vn at flatband (typ) (nV√Hz)	5
Iq per channel (typ) (mA)	20
Vos (offset voltage at 25°C) (max) (mV)	14
Features	Integrated multiplexer, Shutdown
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Input bias current (max) (pA)	5000000
Offset drift (typ) (µV/°C)	27
Iout (typ) (mA)	80
2nd harmonic (dBc)	-78
3rd harmonic (dBc)	-75
Frequency of harmonic distortion measurement (MHz)	10
