Описание

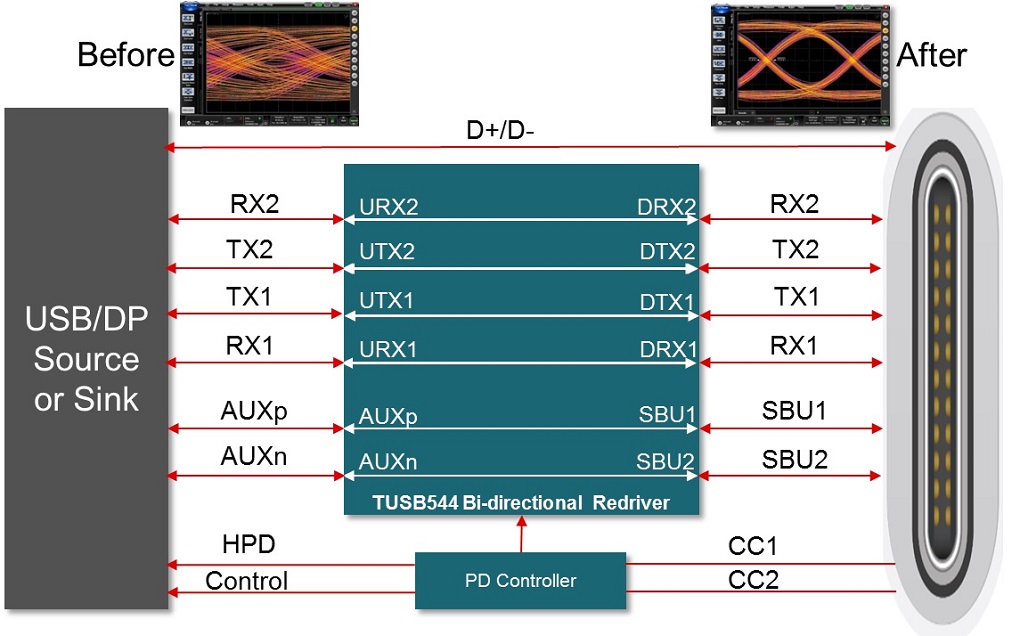

The TUSB544 is a USB Type-C Alt Mode redriver switch supporting data rates up to 8.1 Gbps This protocol-agnostic linear redriver is capable of supporting USB Type-C Alt Mode interfaces including VESA DisplayPort.The TUSB544 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3 V supply and comes in a commercial and industrial temperature range. All four lanes of the TUSB544 are reversible making it a versatile signal conditioner that can be used in many applications.

Protocol Agnostic Reversible 4 Channel Linear Redriver Supporting up to 8.1 Gbps.
- USB Type-C with USB 3.1 Gen1 and DisplayPort 1.4 as Alternate Mode.
Supports Processors with USB 3.1 and DisplayPort Mux Integrated for Type-C Applications
Supports Signal Conditioning Inside Type-C Cable
Cross-Point Mux for SBU Signals
Linear Equalization up to 11 dB at 4.05 GHz
GPIO and I²C Control for Channel Direction and Equalization
Advanced Power Management by Monitoring USB Power States and Snooping DP Link Training
Configuration through GPIO or I²C
Hot-Plug Capable
Single 3.3 V Supply
Industrial Temperature: –40ºC to 85ºC (TUSB544I)
Commercial Temperature: 0ºC to 70ºC (TUSB544)
4 mm × 6 mm, 0.4 mm Pitch, 40-pin QFN Package

Type	Redriver
Function	Type-C
USB speed (MBits)	5000
Number of channels	4
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	5000
Input/ouput voltage (min) (V)	0.7
Input/ouput voltage (max) (V)	3.6
Configuration	Multi-Protocol Linear Redriver
Features	Hot-plug capable
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Supply current (max) (µA)	175000
ESD HBM (typ) (kV)	6
Bandwidth (MHz)	5000
