Описание

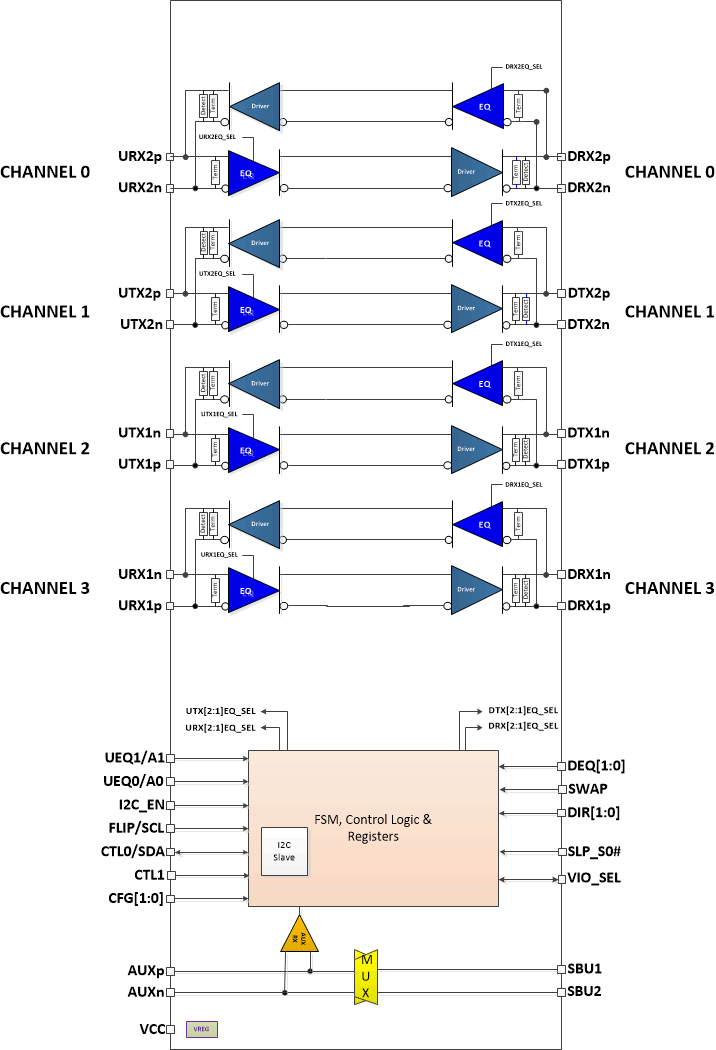

The TUSB1044 is a USB Type-C Alt Mode redriver switch supporting data rates up to 10 Gbps. This protocol-agnostic linear redriver is capable of supporting USB Type-C Alt Mode interfaces including DisplayPort.The TUSB1044 provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3 V supply and comes in a commercial and industrial temperature range. All four lanes of the TUSB1044 are reversible making it a versatile signal conditioner that can be used in many applications.

Protocol Agnostic Reversible 4 Channel Linear Redriver Supporting up to 10 Gbps
- USB Type-C with USB 3.1 Gen 2 and DisplayPort 1.4 as Alternate Mode.
Supports Processors with USB 3.1 and DisplayPort Mux Integrated for Type-C Applications
Supports Signal Conditioning Inside Type-C Cable
Cross-Point Mux for SBU Signals
Linear Equalization up to 11 dB at 4.05 GHz
GPIO and I²C Control for Channel Direction and Equalization
Advanced Power Management by Monitoring USB Power States and Snooping DP Link Training
Configuration through GPIO or I²C
Hot-Plug Capable
Single 3.3 V Supply
Industrial Temperature: –40ºC to 85ºC (TUSB1044I)
Commercial Temperature: 0ºC to 70ºC (TUSB1044)
4 mm × 6 mm, 0.4 mm Pitch, 40-pin QFN Package

Function	Type-C, USB 3.0
Type	Redriver
Alternate mode	Yes
External power-path control	No
Data role	DRP
USB speed (MBits)	10000
Rating	Catalog
Dead battery support	No
Operating temperature range (°C)	-40 to 85, 0 to 70
