Описание

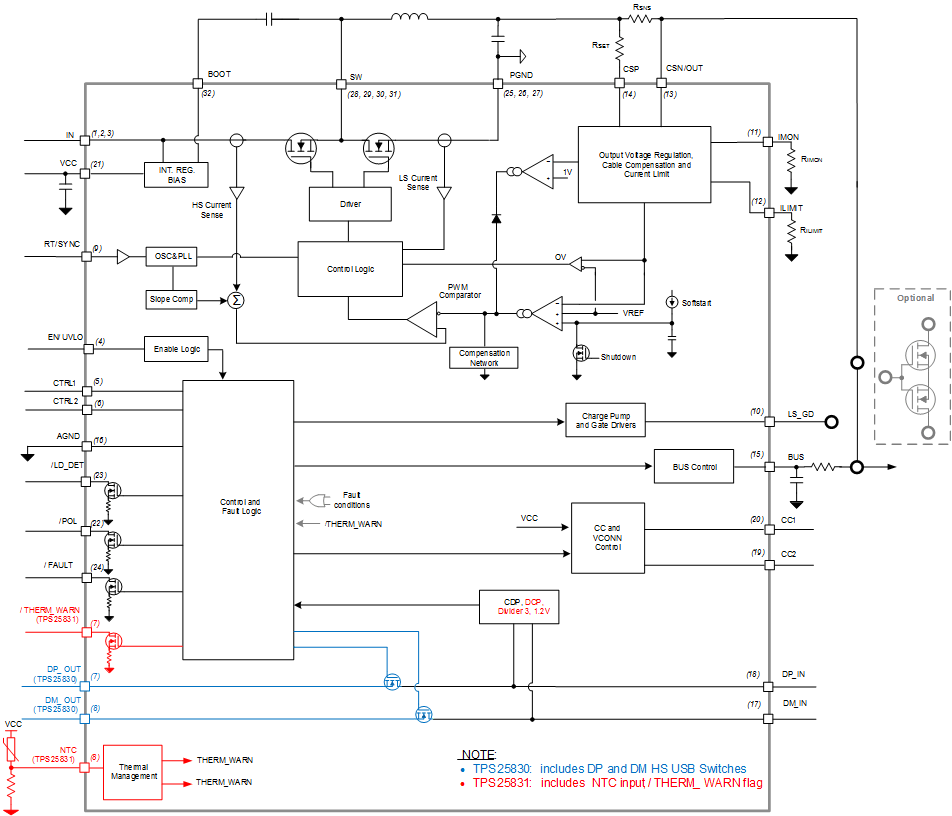

The TPS2583x-Q1 is a USB Type-C and BC1.2 charging port controller that includes a synchronous DC/DC converter. With cable droop compensation, the VBUS voltage remains constant regardless of load current, ensuring connected portable devices are charged at optimal current and voltage.The TPS2583x-Q1 also integrates short-to-battery protection on VBUS, CC1, CC2, DM_IN and DP_IN pins. These pins can withstand voltage up to 18 V.The TPS25830-Q1 includes high bandwidth analog switches for DP and DM pass-through, while the TPS25831-Q1 includes a thermistor input pin and thermal warning flag for user programmable thermal overload protection.

AEC-Q100 Qualified for automotive applications:
- Temperature grade 1: –40°C to +125°C, T_A
- HBM ESD classification level H2
- CDM ESD classification level C5
Functional Safety-Capable
- Documentation available to aid functional safety system design
Synchronous buck DC/DC regulator
- Input voltage range: 4.5 V to 36 V
- Output current: 3.5 A
- 5.1-V output voltage with ±1% accuracy
- Current mode control
- Adjustable frequency: 300 kHz to 2.2 MHz
- Frequency synchronization to external clock
- FPWM with spread-spectrum dithering
- Internal compensation for ease of use
Compliant to USB-IF standards
- USB Type-C Rev 1.3
  - CC logic, V_CONN source and discharge
  - USB cable polarity detection (POL)
- CDP/SDP mode per USB BC1.2
- Automatic DCP modes (TPS25831-Q1 only)
  - DCP shorted mode and YD/T 1591-2009
  - 2.7-V divider 3 mode
  - 1.2-V mode
Optimized for USB power and communication
- User-programmable USB current limit
- Cable droop compensation up to 1.5 V
- High bandwidth data switches on DP and DM (TPS25830-Q1 only)
- NTC input for intelligent thermal management (TPS25831-Q1 only)
Integrated protection
- V_BUS Short-to-V_BAT protection
- DP_IN and DM_IN Short-to-V_BAT and V_BUS
- CC1 and CC2 Short-to-V_BAT protection
- DP_IN, DM_IN, CCx IEC 61000-4-2 rated
  - ±-8kV contact and ±15-kV air discharge
Fault flag reports
32-pin QFN package with wettable flank

Function	Type-C, USB2, USB3
Type	CC controller, DC/DC converter
Power role	Source
Alternate mode	No
External power-path control	No
Data role	Dataless
Internal power path	5 V 3 A
USB speed (MBits)	10000
TI functional safety category	Functional Safety-Capable
Rating	Automotive
Operating temperature range (°C)	-40 to 125
