Описание

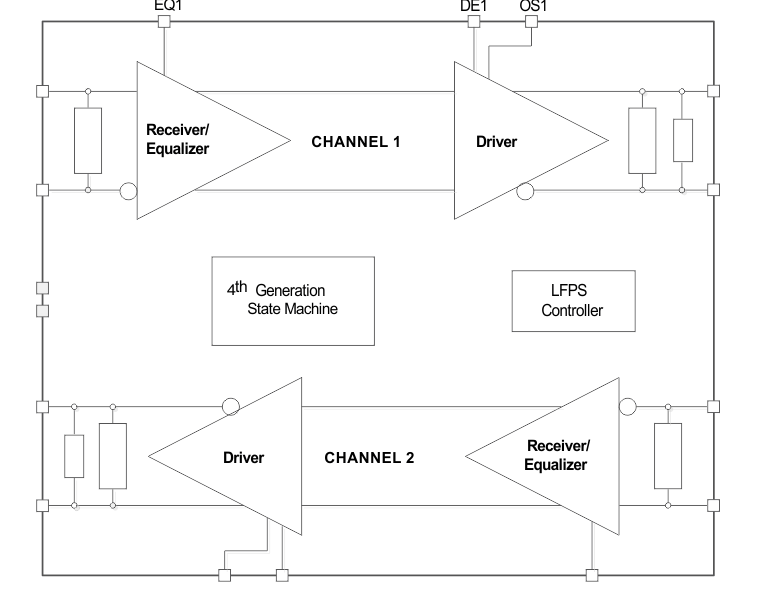

The TUSB522P is a fourth generation, dual-channel, single-lane USB 3.1 GEN1 redriver and signal conditioner supporting 5 Gbps. The device offers low power consumption on a 3.3 V supply with its ultra-low-power architecture. The redriver also supports the USB 3.1 low power modes, which further reduces idle power consumption.The dual-channel capability enables the system to maintain signal integrity on both transmit and receive data paths. The receiver equalization has three gain settings to overcome channel degradation from insertion loss and inter-symbol interference. These settings are controlled from the EQ pins. To compensate for transmission line losses, the output driver supports configuration of De-Emphasis with pins DE. Additionally, automatic LFPS De-Emphasis control allows for full USB 3.1 compliance. These settings allow optimal performance, increased signaling distance, and flexibility in placement of the TUSB522P in the USB 3.1 GEN1 path.

USB3.1 GEN1 5 Gbps, Dual-Channel Re-Driver with 3.3-V Power Supply
Ultra-Low-Power Architecture
- Active: 98 mA
- U2, U3: 1.2 mA
- Disconnect 265 µA
- Shutdown 60 µA
Optimal Receiver Equalization
- of 3, 6, 9 dB at 2.5 GHz
Output Driver De-emphasis of 0, 3.5, and 6 dB
Automatic LFPS De-Emphasis Control to Meet USB 3.1 Certification Requirements
No Host/Device-Side Requirement
Hot-Plug Capable
Industrial Temperature Range: –40ºC to 85ºC TUSB522PI
Commercial Temperature Range: 0ºC to 70ºC TUSB522P

Type	Redriver
Function	USB 3.0
USB speed (MBits)	5000
Number of channels	2
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Input/ouput voltage (min) (V)	0.1
Input/ouput voltage (max) (V)	1.2
Configuration	Dual-channel, Single-Port
Features	Dual Channel Single Port USB 3.0 Redriver with Ultra low-power architecture
Rating	Catalog
Operating temperature range (°C)	-40 to 85, 0 to 70
Supply current (max) (µA)	98000
ESD HBM (typ) (kV)	2
Bandwidth (MHz)	2500
