Описание

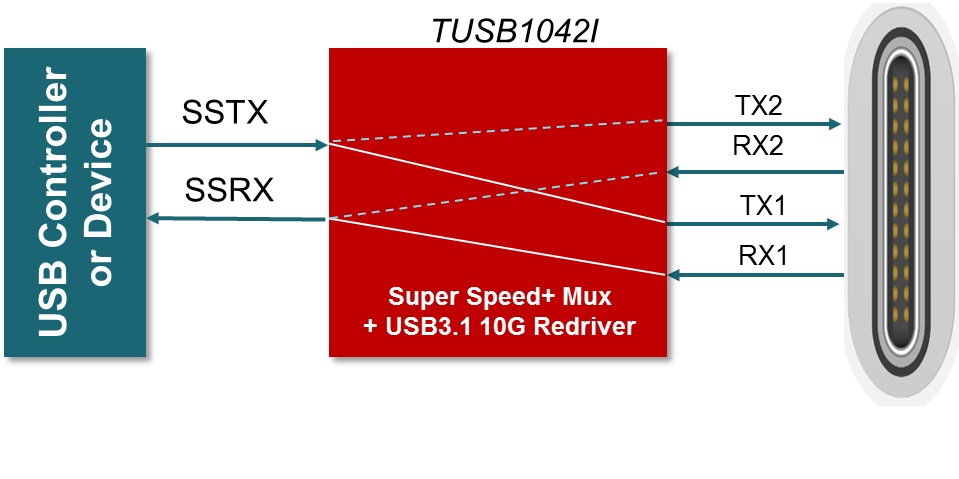

The TUSB1042I is a redriving switch supporting USB 3.1 data rates up to 10 Gbps. The TUSB1042I provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3 V supply and comes in the industrial temperature range.

USB Type-C™ 2:1 redriver switch
USB 3.1 Gen 1/Gen 2 up to 10 Gbps
Ultra-low-power architecture
Linear redriver with up to 14 dB equalization
Automatic LFPS de-emphasis control to meet USB 3.1 certification requirements
Configuration through GPIO or I²C
Intel proprietary DCI capability on USB Type-C for closed chassis debugging
Hot-plug capable
Industrial temperature range: -40ºC to 85ºC
4 mm x 6 mm, 0.4 mm pitch WQFN package

Type	Active mux
Function	Type-C, USB 3.0
USB speed (MBits)	10000
Number of channels	2
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	3.6
Configuration	USB Type-C 2:1 Redriver Switch
Features	Linear redriver with up to 14-dB equalization
Rating	Catalog
Operating temperature range (°C)	-40 to 85
ESD HBM (typ) (kV)	6
Bandwidth (MHz)	10000
