Описание

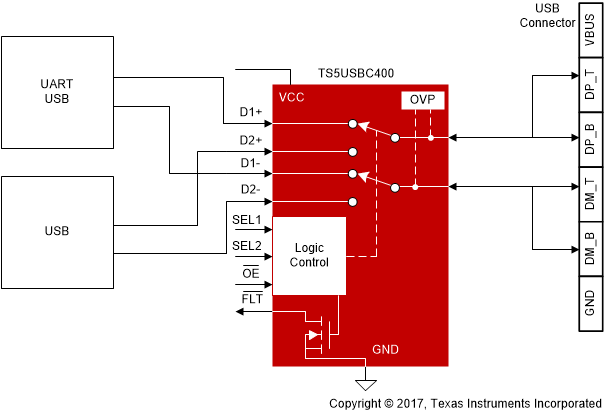

The TS5USBC400 is a bidirectional low-power dual port, high-speed, USB 2.0 analog switch with integrated protection for USB Type-C™ systems. The device is configured as a dual 2:1 or 1:2 switch and is optimized for handling the USB 2.0 D+/- lines in a USB Type-C™ systems. The TS5USBC400 protection on the I/O pins can tolerate up to 16V with automatic shutoff circuitry to protect system components behind the switch. The TS5USBC400 comes in a small 12 pin DSBGA package making it a perfect candidate for mobile and space constrained applications.

Supply Range 2.3 V to 5.5 V
Differential 2:1 or 1:2 Switch/Multiplexer
0-V to 16-V Overvoltage Protection (OVP) on Common Pins
Powered Off Protection When V_CC = 0 V
Low R_ON of 9 Ω Maximum
BW of 1.1 GHz Typical
C_ON of 4.5 pF Typical
Low Power Disable Mode
1.8-V Compatible Logic Inputs
ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (HBM)
TS5USBC400: Standard Temperature Range of
0°C to 70°C
TS5USBC400I: Industrial Temperature Range of
-40°C to 85°C
Small DSBGA Package

Protocols	UART, USB 2.0
Configuration	2:1 SPDT
Number of channels	2
Bandwidth (MHz)	1200
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	2.3
Ron (typ) (mΩ)	5600
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	18
Supply current (typ) (µA)	2.2
ESD HBM (typ) (kV)	2
Operating temperature range (°C)	-40 to 85, 0 to 70
COFF (typ) (pF)	3.5
CON (typ) (pF)	4.5
Off isolation (typ) (dB)	-90
OFF-state leakage current (max) (µA)	1.2
Ron (max) (mΩ)	9000
Ron channel match (max) (Ω)	0.3
Turnoff time (disable) (max) (ns)	350
Turnon time (enable) (max) (ns)	1000
