Описание

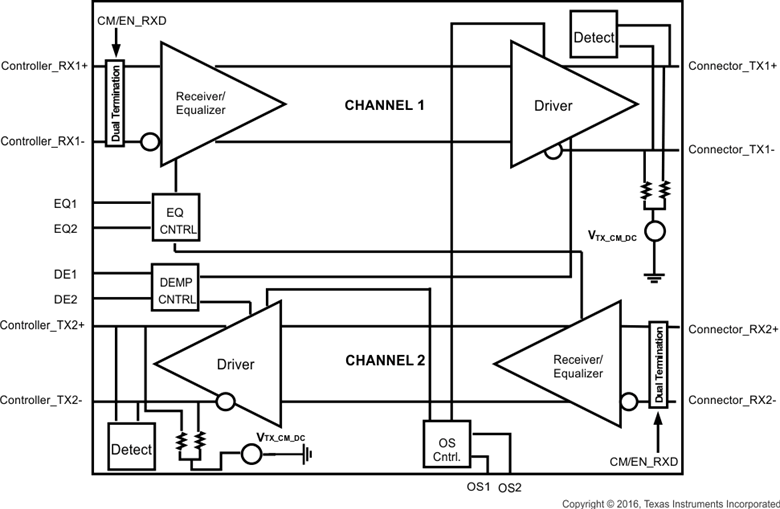

The SN65LVPE512 device is a dual-channel, single-lane USB 3.0 redriver and signal conditioner supporting data rates of 5 Gbps. The device complies with USB 3.0 spec revision 1.0, supporting electrical idle condition and low frequency periodic signals (LFPS) for USB 3.0 power management modes.

Single Lane USB 3.0 Equalizer, Redriver
Selectable Equalization, De-Emphasis and Output
Swing Control
Integrated Termination
Hot-Plug Capable
Low Active Power (U0 state)
- 315 mW (Typical), V_CC = 3.3 V
USB 3.0 Low Power Support
- 7 mW (Typical) When No Connection Detected
- 70 mW (Typical) When Link in U2, U3 Mode
Excellent Jitter and Loss Compensation
Capability:
- > 40 Inches of Total 4-Mil Stripline on FR4
Small Foot Print: 3 mm × 3 mm and 4 mm × 4 mm
24-pin QFN Packages
High Protection Against ESD Transient
- HBM: 5,000 V
- CDM: 1,500 V
- MM: 200 V

Type	Redriver
Function	USB 3.0
USB speed (MBits)	5000
Number of channels	2
Rating	Catalog
Operating temperature range (°C)	-40 to 85
