Описание

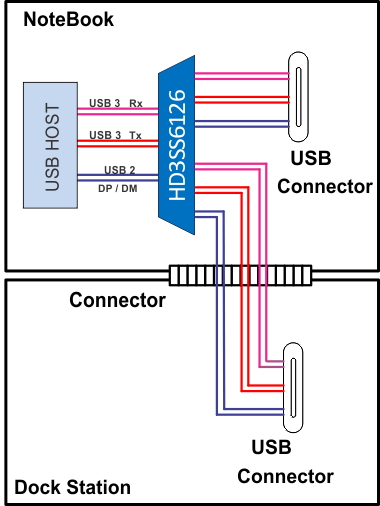

The HD3SS6126 device is a high-speed, passive switch that is designed for USB applications to route both SuperSpeed USB RX and TX and USB 2.0 DP and DM signals from a source to two destinations or vice versa. The device can also be used for DisplayPort, PCI-Express, SATA, SAS, and XAUI applications. The HD3SS6126 device can be used in either sink-side or source-side applications.

Ideal for USB Applications
- Signal Switch for USB 3.0 (SuperSpeed USB
  and USB 2.0 HS/FS/LS)
Three Bidirectional Differential Pair Channel
MUX/DEMUX Switches Also Suitable for
DisplayPort, PCIe Gen1/2/3, SATA 1.5/3/6G, SAS
1.5/3/6G and XAUI Applications
Supports Data Rates up to 10 Gbps on High-
Bandwidth Path (SS)
V_CC Operating Range 3.3 V ± 10%
Wide –3-dB Differential BW of More Than 10 GHz
on High-Bandwidth Path (SS)
Uses a Unique Adaptation Method to Maintain a
Constant Channel Impedance Over the Supported
Common-Mode Voltage Range
Excellent High-bandwidth Path Dynamic
Characteristics (at 2.5 GHz)
- Crosstalk = –35 dB
- Isolation = –23 dB
- Insertion Loss = –1.1 dB
- Return Loss = –11 dB
Small 3.5 mm × 9 mm, 42-Pin WQFN Package
(RUA)
Active Mode Power = 8 mW

Type	Passive mux
Function	USB 2.0, USB 3.0
USB speed (MBits)	5000
Number of channels	3
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	5000
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	1.8
Configuration	2:1 SPDT
Features	USB 2.0, USB 3.0
Rating	Catalog
Operating temperature range (°C)	0 to 70
Supply current (max) (µA)	3
ESD HBM (typ) (kV)	2
Bandwidth (MHz)	10000
