Описание

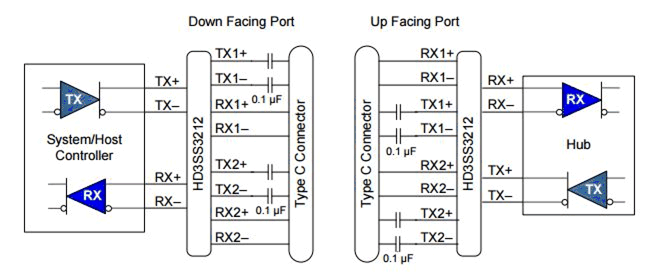

The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A. The HD3SS3212 is a generic analog differential passive switch that can work for any high-speed interface applications requiring a common mode voltage range of 0 to 2 V and differential signaling with differential amplitude up to 1800 mVpp. It employs adaptive tracking that ensures the channel remains unchanged for the entire common mode voltage range. Excellent dynamic characteristics of the device allow high-speed switching with minimum attenuation to the signal eye diagram with very little added jitter. It consumes <2 mW of power when operational and has a shutdown mode exercisable by OEn pin resulting <20 µW.

Provides MUX/DEMUX Solution for USB Type-C™ Ecosystem for USB 3.1 Gen 1 and Gen 2 Data Rates
Compatible With MIPI DSI/CSI, FPDLinkIII, LVDS, and PCIE Gen II, III
Operates up to 10 Gbps
Wide –3-dB Differential BW of over 8 GHz
Excellent Dynamic Characteristics (at 5 GHz)
- Crosstalk = –32 dB
- Off Isolation = –19 dB
- Insertion Loss = –1.6 dB
- Return Loss = –12 dB
Bidirectional "Mux/De-Mux" Differential Switch
Supports Common Mode Voltage 0 to 2 V
Single Supply Voltage V_CC of 3.3 V
Commercial Temperature Range of 0°C to 70°C (HD3SS3212RKS)
Industrial Temperature Range of –40°C to 85°C (HD3SS3212IRKS)

Type	Passive mux
Function	Type-C, USB 3.0
USB speed (MBits)	10000
Number of channels	2
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	5000
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	2
Configuration	2:1 SPDT
Features	Logic Controlled (Output Enabled), USB 3.1 (Type-C)
Rating	Catalog
Operating temperature range (°C)	-40 to 85, 0 to 70
Supply current (max) (µA)	800
ESD HBM (typ) (kV)	2
Bandwidth (MHz)	8000
