Описание

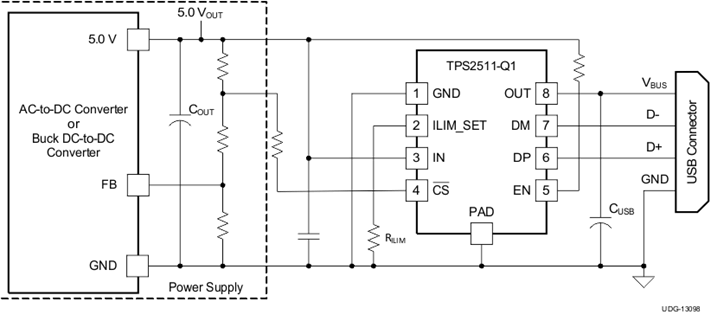

The TPS2511-Q1 is a USB dedicated charging port (DCP) controller and current limiting power switch. An auto-detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following charging schemes: Divider DCP, required to apply 2.7 V on D+ and 2.0 V on D– or 2.0 V on D+ and 2.7 V on D–;BC1.2 DCP, required to short D+ to D–;1.2 V on both D+ and D–. The TPS2511-Q1 is a 80-mΩ power-distribution switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device also provides hiccup mode when the output (OUT) voltage is less than 3.80 V typical or when an over-temperature protection occurs during an overload condition. Accurate and programmable current limit provides flexibility and convenience for applications. The TPS2511-Q1 provides a CS pin for USB cable resistance compensation and a EN pin to turn on and turn off the device.

Qualified for Automotive Application
AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1:
  –40°C to 125°C Ambient Operating Temperature Range
- Device HMB ESD Classification Level H2
- Device CDM ESD Classification Level C3B
Supports a DCP Shorting D+ to D–
Supports a DCP Applying 2.0 V on D+ and 2.7 V on D–
(or 2.7 V on D+ and 2.0 V on D–)
Supports a DCP Applying 1.2 V on Data Lines
Automatically Switch D+ and D– Lines Connections
for an Attached Device
Hiccup Mode for Short-Circuit Protection
Provides CS Pin for USB Cable Compensation
Programmable Current Limit (ILIM_SET Pin)
80-mΩ typical High-Side MOSFET
Accurate ±10% Current-Limit at 2.3 A typical
Meets USB Power Switch Requirements
Drop-In and List of materials Compatible with TPS2511
Operating Range: 4.5 V to 5.5 V
Available in MSOP, 8-Pin Package
UL Listed and CB File Number E169910

Product type	Charge port controller
Vin (min) (V)	4.5
Vin (max) (V)	5.5
Continuous current (max) (A)	2.2
Current limit (A)	0.25 to 2.7
Operating temperature range (°C)	-40 to 125
Enable	Active High
Number of switches	1
Current limit accuracy at 1 A	0.1
Rating	Automotive
