Описание

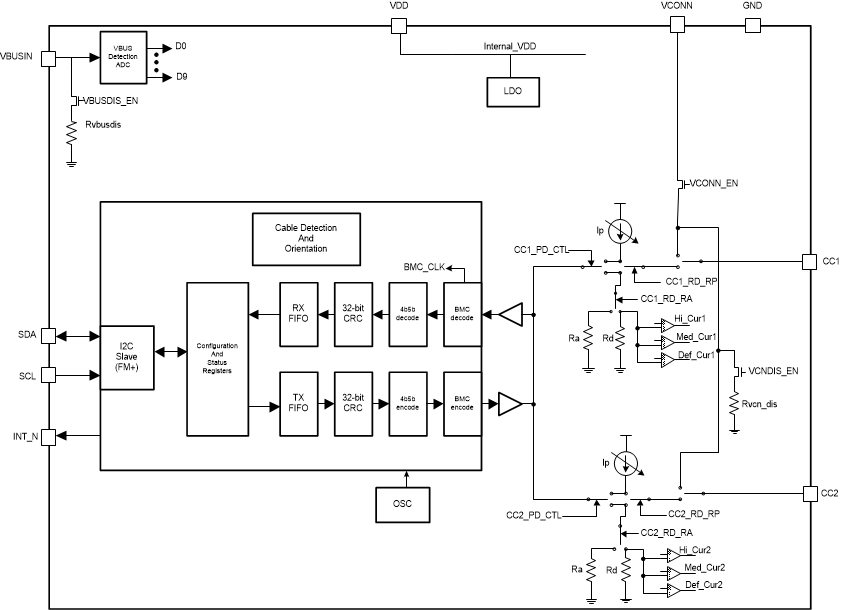

TUSB422 is a USB PD PHY that enables a USB Type-C port with the Configuration Channel (CC) logic needed for USB Type-C ecosystems. It integrates the physical layer of the USB BMC power delivery (PD) protocol to allow up to 100-W of power and support for alternate mode interfaces. An external microprocessor, containing USB Type-C Port Manager (TCPM), communicates with the TUSB422 through an I2C interface. Under control of the TCPM, TUSB422 uses the CC pins to determine port attach/detach, cable orientation, role detection, and port control for USB Type-C current mode. The TUSB422 can be configured as DFP, UFP, or DRP, depending on the application. The TUSB422 implements VBUS detection and discharge for the implementation of a compliant USB Type-C port.The TUSB422 integrates 2.5 Watt switch to provide VCONN power for an active cable. The device also provides VCONN discharge function. The TUSB422 also supports USB Type-C optional features such as audio and debug accessory.The device operates over a wide supply-range and has low power consumption. The TUSB422 is available in industrial temperature ranges.

Supports USB Type-C™ 1.2 and Power Delivery (PD) Specifications
USB PD Phy with I²C Interface (TCPCi) Supporting:
- 5 — 24 V Power Sourcing and Sinking
- 2.5 Watt VCONN switch
- Alt Mode Negotiations
Optimized for Portable Applications with Autonomous Dual Role Port (DRP) Support
Software Configurable as Dedicated Host, Dedicated Device, or Dual-Role
- DFP, UFP and DRP
- Attach/Detach of USB port
- Cable Orientation Detection
- Current Mode Advertisement and Detection
- Debug and Audio Accessory Support
- Active Cable Detection
- VCONN for Active Cable
Dead Battery Support
Integrated over-temperature sensing diode (OTSD)
VBUS Detect and Discharge Control
VDD Supply Voltage: 2.7 V — 5.5 V
Low Current Consumption
Industrial Temperature Range of –40°C to 85°C

Function	Type-C
USB speed (MBits)	10000
Type	PD controller
Supply voltage (V)	2.7, 5
Rating	Catalog
Operating temperature range (°C)	-40 to 85
