Описание

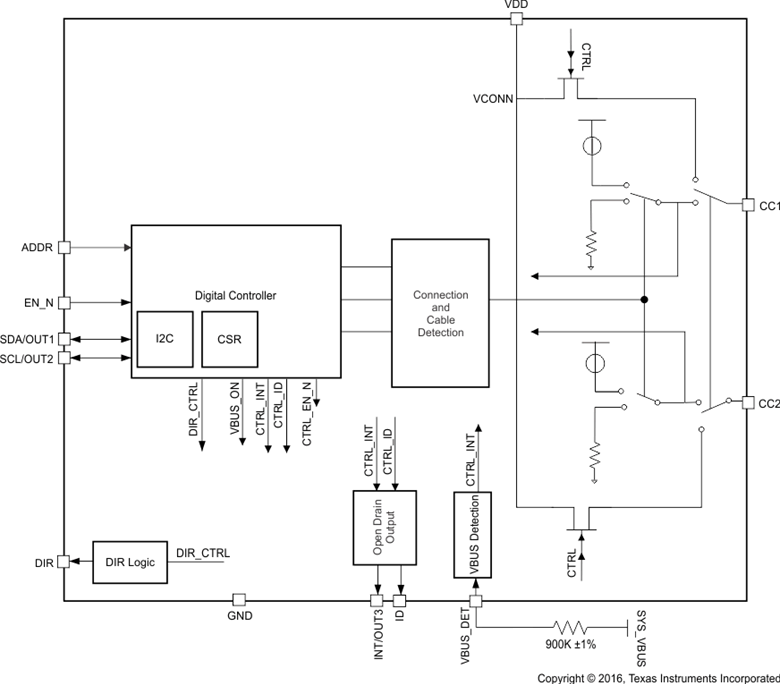

The TUSB322I device enables USB Type-C ports with the configuration channel (CC) logic required for Type-C ecosystems. The TUSB322I device uses the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB322I device can be configured as a downstream facing port (DFP), upstream facing port (UFP), or a dual role port (DRP), making the TUSB322I device ideal for any application.The TUSB322I device alternates configuration as a DFP or UFP according to the Type-C Specifications. The CC logic block monitors the CC1 and CC2 pins for pullup or pulldown resistances to determine when a USB port has been attached, the orientation of the cable, and the role detected. The CC logic detects the Type-C current mode as default, medium, or high depending on the role detected. VBUS detection is implemented to determine a successful attach in UFP and DRP modes. The TUSB322I will supply VCONN when an active cable is detected.The device operates over a wide supply range and has low-power consumption. The TUSB322I device is available in industrial temperature ranges.

USB Type-C™ Specification 1.1
Backward Compatible with USB Type-C Specification 1.0
Supports Up to 3 A of Current Advertisement and Detection
Mode Configuration
- Host Only – DFP/Source (I²C Mode only)
- Device Only – UFP/Sink (I²C Mode only)
- Dual Role Port – DRP
Channel Configuration (CC)
- Attach of USB Port Detection
- Cable Orientation Detection
- Role Detection
- Type-C Current Mode (Default, Medium, High)+u
V_BUS Detection
I²C or GPIO Control
VCONN Support for Active Cables
Cable Detection and Direction Control
for External Switches
Role Configuration Control through I²C
Supply Voltage: 4.5 V to 5.5 V
Low Current Consumption
Industrial Temperature Range of –40 to 85°C

Function	Type-C
USB speed (MBits)	10000
Type	CC controller
Supply voltage (V)	4.5, 5.5
Rating	Catalog
Operating temperature range (°C)	-40 to 85
