Описание

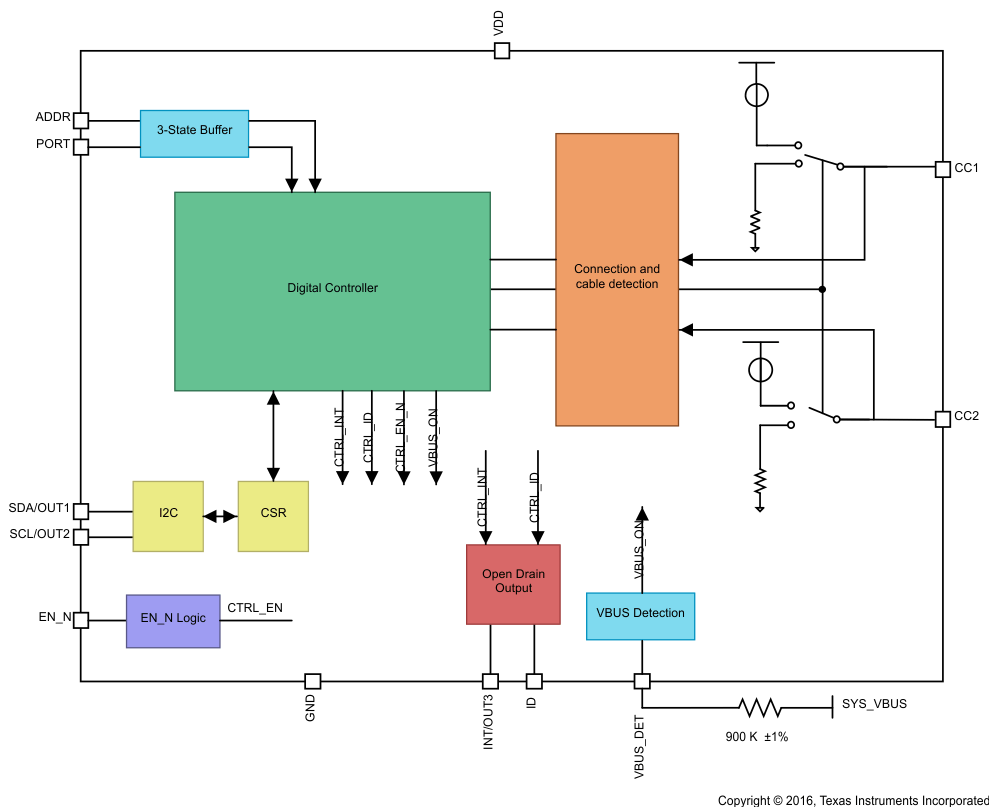

The TUSB320 device enables USB Type-C ports with the configuration channel (CC) logic needed for Type-C ecosystems. The TUSB320 device uses the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB320 device can be configured as a downstream facing port (DFP), upstream facing port (UFP) or a dual role port (DRP) making it ideal for any application.The TUSB320 device alternates configuration as a DFP or UFP according to the Type-C specifications. The CC logic block monitors the CC1 and CC2 pins for pullup or pulldown resistances to determine when a USB port has been attached, the orientation of the cable, and the role detected. The CC logic detects the Type-C current mode as default, medium, or high depending on the role detected. VBUS detection is implemented to determine a successful attach in UFP and DRP modes.The device operates over a wide supply range and has low-power consumption. The TUSB320 device is available in industrial and commercial temperature ranges.

USB Type-C™ specification 1.1
Backward compatible with USB Type-C specification 1.0
Supports up to 3 A of current advertisement and detection
Mode configuration
- Host only – DFP (source)
- Device only – UFP (sink)
- Dual role port – DRP
Channel configuration (CC)
- Attach of USB port detection
- Cable orientation detection
- Role detection
- Type-C current mode (default, medium, high)
V_BUS detection
I²C or GPIO control
Role configuration control through I²C
Supply voltage: 2.7 V to 5 V
Low current consumption
Industrial temperature range of –40 to 85°C

Function	Type-C
USB speed (MBits)	480
Type	CC controller
Supply voltage (V)	2.7, 5
Rating	Catalog
Operating temperature range (°C)	-40 to 85, 0 to 70
