Описание

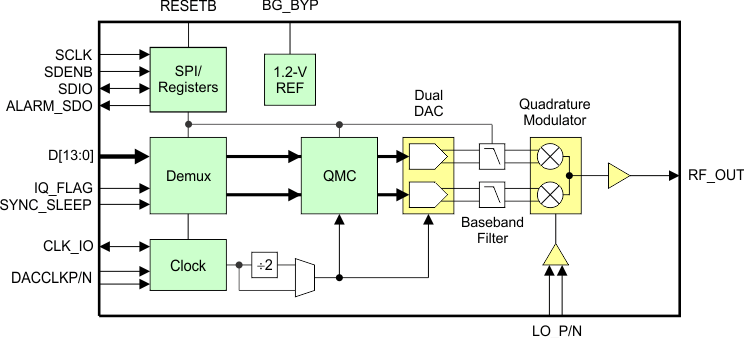

The AFE7071 is a dual 14-bit 65-MSPS digital-to-analog converter (DAC) with integrated, programmable fourth-order baseband filter and analog quadrature modulator. The AFE7071 includes additional digital signal-processing features such as a quadrature modulator correction circuit, providing LO and sideband suppression capability. The AFE7071 has an interleaved 14-bit 1.8-V to 3.3-V CMOS input. The AFE7071 provides 20 MHz of RF signal bandwidth with an RF output frequency range of 100 MHz to 2.7 GHz. The AFE7071 package is a 7-mm × 7mm 48-pin QFN package. The AFE7071 is specified over the full industrial temperature range (–40°C to 85°C).

Maximum Sample Rate: 65 MSPS
Low Power: 334 mW
Interleaved CMOS Input, 1.8–3.3 V IOVDD
Input FIFO for Independent Data and DAC Clocks
3- or 4-pin SPI Interface for Register Programming
Quadrature Modulator Correction: Gain, Phase, Offset for Sideband and LO Suppression
Analog Baseband Filter With Programmable Bandwidth: 20-MHz Maximum RF Bandwidth
RF Frequency Range: 100 MHz to 2.7 GHz
Package: 48-Pin QFN (7-mm × 7-mm)

Frequency (min) (MHz)	100
Frequency (max) (MHz)	2700
Resolution (Bits)	14
Sample/update rate (Msps)	65
Number of DAC channels	2
Interpolation	1x
Output type	Single-ended
Power consumption (typ) (mW)	335
Operating temperature range (°C)	-40 to 85
Rating	Catalog
