Описание

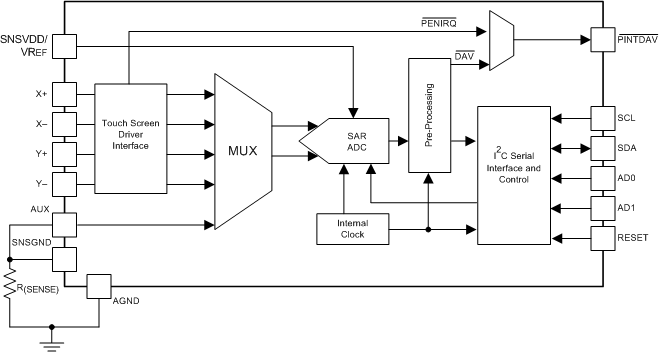

The TSC2013-Q1 device is a very low-power dual-touch screen controller designed to work with power-sensitive, low-cost touch-screen displays in automotive infotainment and navigation systems. It contains a complete, ultralow-power, 12-bit, analog-to-digital (ADC) resistive touch-screen converter, including drivers and the control logic to measure touch pressure. The TSC2013-Q1 device enables pinch, rotate, and zoom functionality over a standard four-wire interface. The device supports an I2C serial bus and data transmission protocol in all three defined modes: standard, fast, and high-speed. The 10 or 12-bit ADC within is easily programmable to customize system and user experience.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
4-Wire Touch Screen Interface
Ratiometric Conversion
Single 1.6-V to 3.6-V Supply:
- I/OVDD 1.2 to 3.6 V
- SNSVDD: 1.6 to 3.6 V
Preprocessing to Reduce Bus Activity
High-Speed I²C-Compatible Interface
Internal Detection of Screen Touch
Register-Based Programmable:
- 10-Bit or 12-Bit Resolution
- Sampling Rates
- System Timing
Touch Pressure Measurement
Auto Power-Down Control
Low Power:
- 430 µA at 1.8 V, 50 SSPS
- 320 µA at 1.6 V, 50 SSPS
- 58 µA at 1.6 V, 8.2 kSPS Eq. Rate

SAR ADC resolution (Bits)	12
Touch panel	4-Wire
Control interface	I2C
Vref (int/ext)	External
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Analog supply (min) (V)	1.6
Analog supply (max) (V)	3.6
I/O supply voltage (min) (V)	-0.4
I/O supply voltage (max) (V)	5.1
Input type	Differential
