TMP300 Texas instruments

TMP300

Уточнить цену

TMP300

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

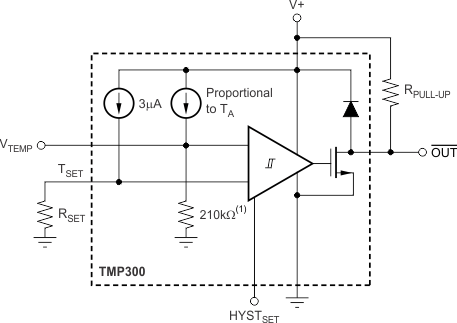

The TMP300 is a low-power, resistor-programmable, digital output temperature switch. The device allows a threshold point to be set by adding an external resistor. Two levels of hysteresis are available. The TMP300 has a VTEMP analog output that can be used as a testing point or in temperature-compensation loops.Available in two micropackages with proven thermal characteristics, low current consumption, and a supply voltage as low as 1.8 V, the TMP300 is designed for power-sensitive systems that require simple and reliable thermal management.

Setpoint type	Resistor Programmable
Setpoint value (°C)	-40 to 125
Operating temperature range (°C)	-40 to 125
Accuracy over temp range (max) (°C)	2
Sensor gain (mV/°C)	10
Output type	Open drain
Supply voltage (min) (V)	1.8
Supply voltage (max) (V)	18
Supply current (typ) (µA)	110
Number of comparator channels	1
Features	Built-in hysteresis
Rating	Catalog
Interface type	Analog output, Switch
