Описание

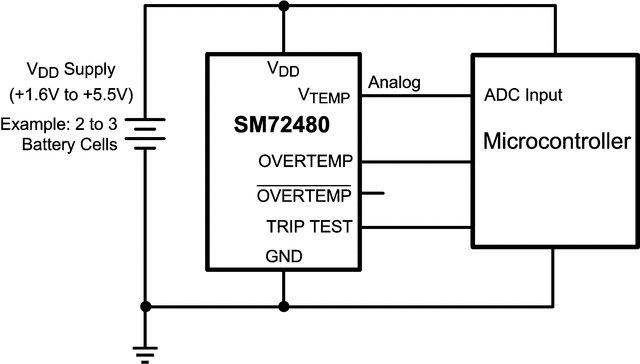

The SM72480 is a low-voltage, precision, dual-output, low-power temperature switch and temperature sensor. The temperature trip point (TTRIP) is set at the factory to be 120°C. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability. In normal operation the SM72480 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP − THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while the OVERTEMP digital output, is active-low with an open-drain structure. The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient — NTC. Driving the TRIP TEST input high: (1) causes the digital outputs to be asserted for in-situ verification and, (2) causes the threshold voltage to appear at the VTEMP output pin, which could be used to verify the temperature trip point. The SM72480's low minimum supply voltage makes it ideal for 1.8 volt system designs. Its wide operating range, low supply current , and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications.

Renewable Energy Grade
Low 1.6V Operation
Latching Function: Device Can Latch the Over Temperature Condition
Push-pull and Open-Drain Temperature Switch Outputs
Very Linear Analog V_TEMP Temperature Sensor Output
V_TEMP Output Short-circuit Protected
2.2 mm by 2.5 mm (typ) WSON-6 Package
Excellent Power Supply Noise Rejection

Key Specifications

Supply Voltage 1.6V to 5.5V
Supply Current 8 μA (typ)
Accuracy, Trip Point Temperature 0°C to 150°C ±2.2°C
Accuracy, VTEMP 0°C to 150°C ±2.3°C
VTEMP Output Drive ±100 μA
Operating Temperature −50°C to 150°C
Hysteresis Temperature 4.5°C to 5.5°C

All trademarks are the property of their respective owners.

Setpoint type	Factory Programmed
Setpoint value (°C)	105, 120, 125
Operating temperature range (°C)	-50 to 150
Accuracy over temp range (max) (°C)	1.7
Sensor gain (mV/°C)	-7.7^-10.3
Output type	Open drain, Push Pull
Supply voltage (min) (V)	1.6
Supply voltage (max) (V)	5.5
Supply current (typ) (µA)	8
Number of comparator channels	1
Rating	Catalog
Interface type	Analog
