Описание

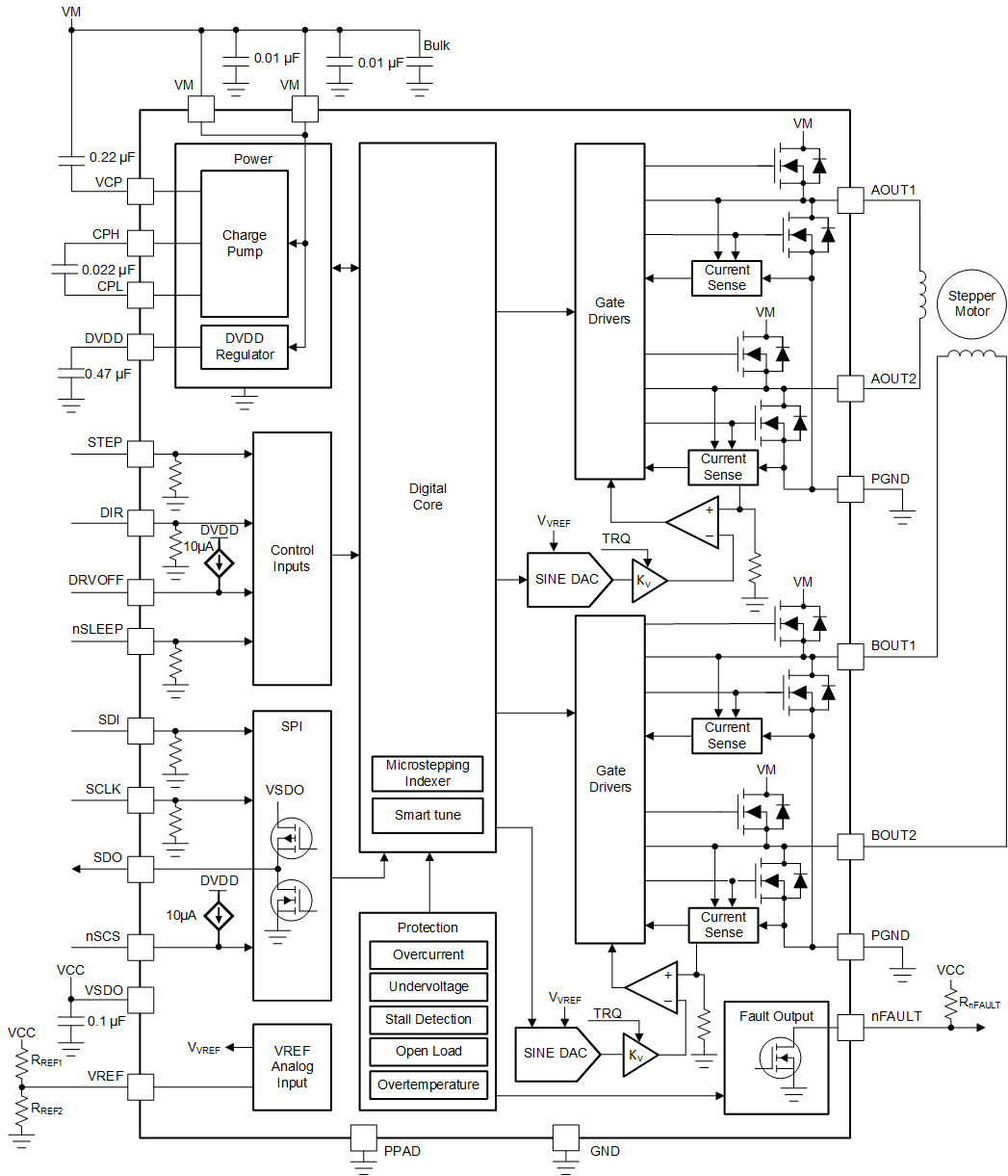

The DRV8889-Q1 and DRV8889A-Q1 are fully integrated stepper motor drivers, supporting up to 1.5 A full scale current with an internal microstepping indexer, smart tune decay technology, advanced stall detection algorithm, and integrated current sensing.The device supports up to 1/256 levels of microstepping to enable a smooth motion profile. Integrated current sensing eliminates the need for two external resistors, saving board space and cost. With advanced stall detection algorithm, designers can detect if the motor stopped and take action as needed which can improve efficiency and reduce noise. The device provides 8 decay mode options including: smart tune, slow, and mixed decay options. Smart tune automatically adjusts for optimal current regulation performance. The device also includes an integrated torque DAC which allows for the controller to scale the output current through SPI without needing to scale the VREF voltage reference. A low-power sleep mode is provided using an nSLEEP pin. The device features full duplex, 4-wire synchronous SPI communication, with daisy chain support for up to 63 devices connected in series, for configurability and detailed fault reporting. View our full portfolio of stepper motor drivers on ti.com.

AEC-Q100 Qualified for Automotive
Up to 1/256 microstepping
Integrated current sense functionality
- No sense resistors required
Smart tune decay technology, Fixed slow, and mixed decay options
4.5 to 45-V Operating supply voltage range
Pin to pin R_DS(ON)variants:
- DRV8889/A-Q1: 900 mΩ HS + LS at 25°C
- DRV8899-Q1: 1200 mΩ HS + LS at 25°C
High current capacity per bridge
- DRV8889/A-Q1: 2.4-A peak, 1.5-A full-scale
- DRV8899-Q1: 1.7-A peak, 1-A full-scale
TRQ_DAC bits to scale full-scale current
Configurable off-time PWM chopping
Simple STEP/DIR interface
SPI with daisy chain support
Low-current sleep mode (2 µA)
Programmable output slew rate
Programmable open load detection time with DRV8889A-Q1
Spread spectrum clocking to minimize EMI
Protection features
- VM undervoltage lockout
- Overcurrent protection
- Stall detection
- Open load detection
- Overtemperature warning and shutdown
- Undertemperature warning
- Fault condition indication pin (nFAULT)
Functional Safety-Capable
- Documentation available to aid functional safetysystem design

Number of full bridges	2
Vs (min) (V)	4.5
Vs ABS (max) (V)	50
Full-scale current (A)	1.5
Peak output current (A)	2.4
RDS(ON) (HS + LS) (mΩ)	900
Sleep current (µA)	2
Control mode	STEP/DIR
Control interface	Hardware (GPIO), SPI
Microstepping levels	256
Features	Integrated Current Sensing, Open-Load Detection, Smart Tune, Stall Detection
Rating	Automotive
Operating temperature range (°C)	-40 to 125
TI functional safety category	Functional Safety-Capable
