Описание

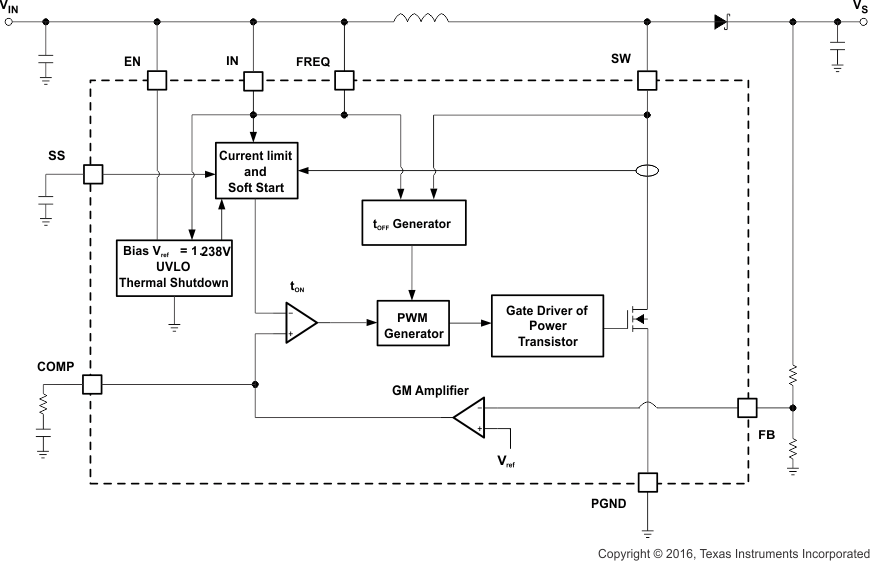

The TPS61085A-Q1 device is a high-frequency, high-efficiency, DC/DC boost converter with an integrated 2-A, 0.13-Ω power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimizing the regulator for application conditions. A capacitor connected to the specific soft-start pin minimizes inrush current at start-up.

AEC-Q100 qualified for automotive applications:
- Device temperature grade 2: –40°C to +105°C, T_A
2.3-V to 6-V input voltage range
18.5-V boost converter with 2-A switch current
650-kHz or 1.2-MHz selectable switching frequency
Adjustable soft start
Thermal shutdown
Undervoltage lockout
8-pin VSSOP package

Topology	Boost
Vin (min) (V)	2.3
Vin (max) (V)	6
Vout (min) (V)	2.8
Vout (max) (V)	18.5
Switch current limit (typ) (A)	2.6
Type	Converter
Regulated outputs (#)	1
Switching frequency (min) (kHz)	480
Switching frequency (max) (kHz)	1500
Iq (typ) (mA)	0.07
Features	Enable, Light Load Efficiency, UVLO Fixed
Duty cycle (max) (%)	89
Operating temperature range (°C)	-40 to 125
Rating	Automotive
