Описание

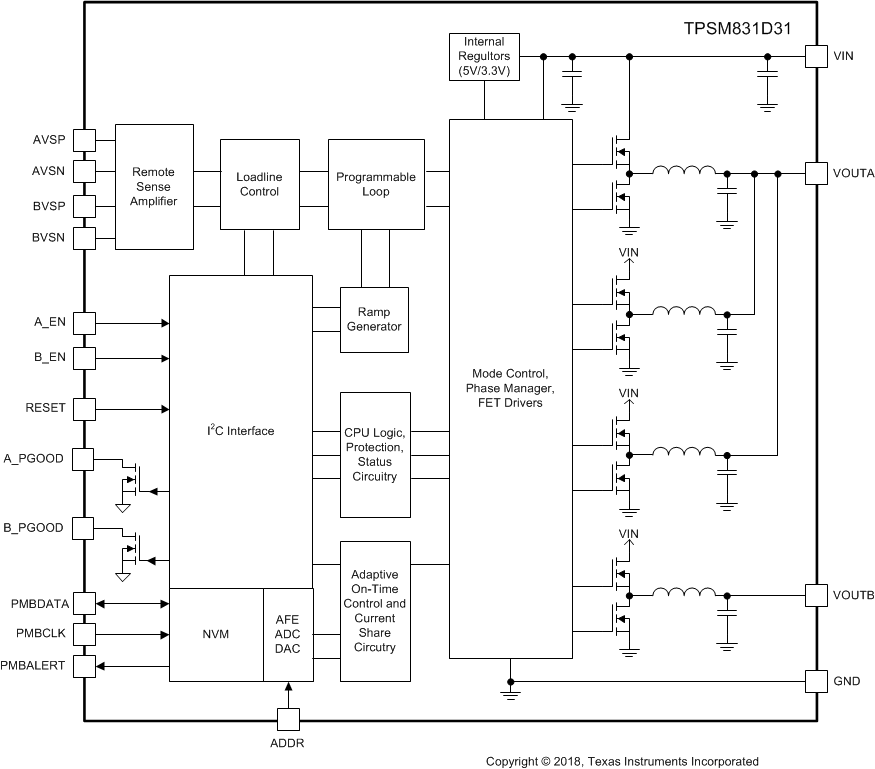

The TPSM831D31 is a PMBus™-controlled, dual-output, 4-phase power module that combines a high-performance D-CAP+™ controller with four high-efficiency Smart Power Stages, and low-loss inductors, into a rugged, thermally enhanced surface-mount package. The user supplies the input and output capacitors and a few passive components to complete the system. The first output is a 3-phase power stage that can deliver up to 120 A of continuous output current. The second output is a single phase power stage that can deliver up to 40 A of output current.The PMBus interface provides for converter configuration of each VOUT, UVLO, soft-start, overcurrent, and thermal shutdown parameters. The interface provides support for telemetry that can report the actual input voltage, output voltage, output current, and device temperature. The device can report input and output power. The device supports standard PMBus warning and fault functions. The device supports PMBus communication speeds up to 1 MHz, with 1.8-V or 3.3-V logic levels, as detailed in Section 4.3 of SMBus Specification V3.0. The module supports a subset of the commands in the PMBus 1.3 specification.

Input voltage range: 8 V to 14 V
Dual output: 120 A (3-phase) + 40 A (1-phase)
Output voltage range: 0.25 V to 1.52 V
- Programmable in 5-mV steps
- Differential remote sense
- ±0.5% Vref accuracy with remote sense
PMBus Interface
- Programmable V_OUT, UVLO, fault limits
- VIN, VOUT, IOUT, temperature telemetry
- Supports up to 1-MHz bus speed
- On-chip non-volatile configuration memory
Ultra-fast transient response
Switching frequency range: 350 kHz to 700 kHz
15-mm × 48-mm footprint and 12-mm height
Efficiencies up to 95%
Dual power good outputs
Overcurrent, overvoltage, overtemperature protection
Operating IC junction range: –40°C to 125°C
Operating ambient range: –40°C to 105°C

Iout (max) (A)	120
Vin (min) (V)	8
Vin (max) (V)	14
Vout (min) (V)	0.25
Vout (max) (V)	1.52
Soft start	Adjustable
Features	Adjustable current limit, Current Sharing, Dynamic Voltage Scaling, EMI Tested, Enable, Light Load Efficiency, PMBus, Phase Interleaving, Power good, Remote Sense, Voltage Margining
Operating temperature range (°C)	-40 to 105
Iq (typ) (mA)	8
Regulated outputs (#)	2
Switching frequency (max) (kHz)	700
Switching frequency (min) (kHz)	350
Duty cycle (max) (%)	25
Topology	Buck, Synchronous Buck
Type	Module
Rating	Catalog
Control mode	D-CAP+
