Описание

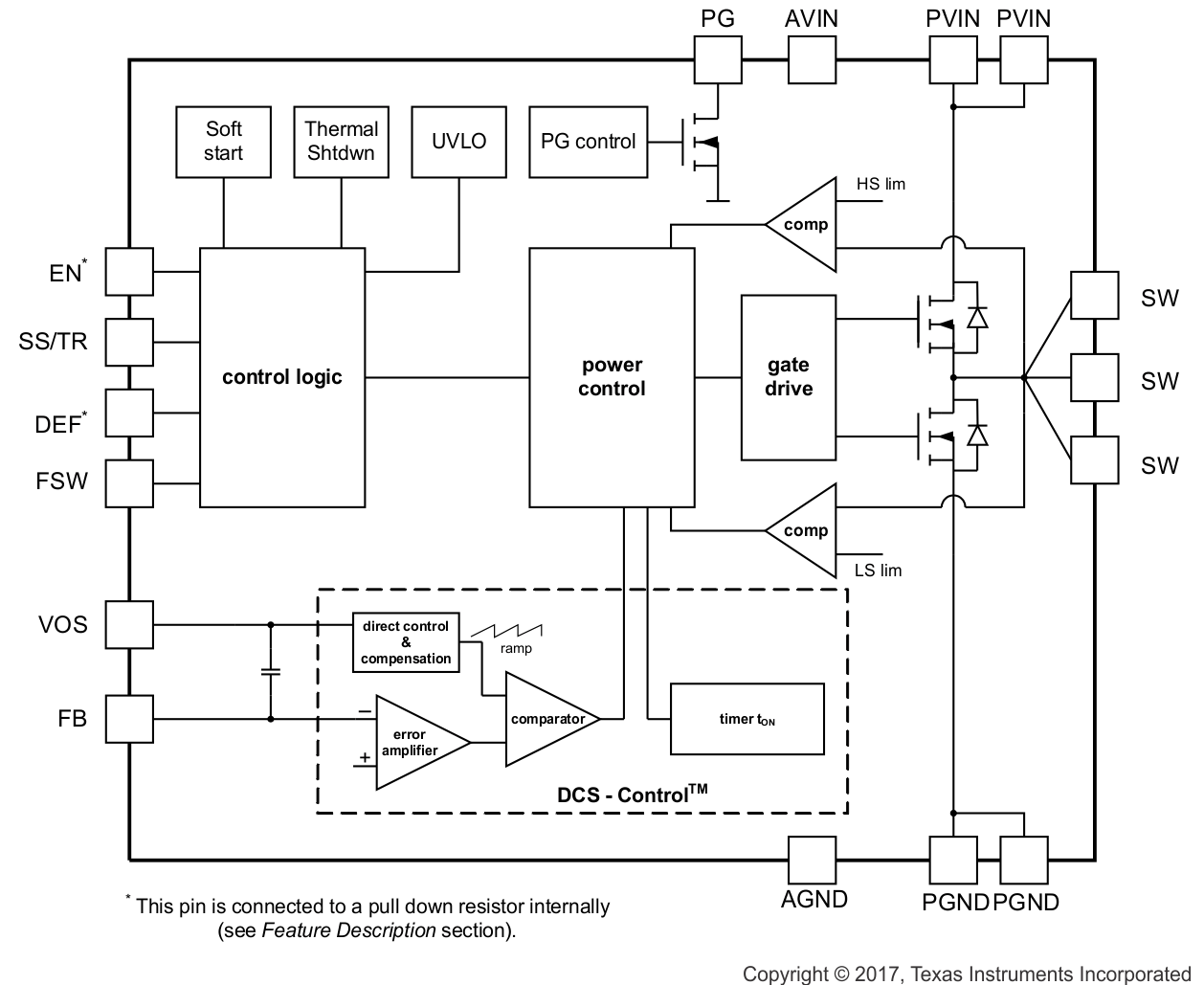

The TPS62150A-Q1 device is an easy-to-use synchronous step-down DC-DC converter optimized for applications with high power density. A high switching frequency of typically 2.5 MHz allows the use of small inductors and provides fast transient response as well as high output-voltage accuracy through the use of the DCS-Control™ topology. With a wide operating input-voltage range of 3 to 17 V, the device is ideally suited for systems powered from intermediate bus power rails. The device supports up to 1A continuous output current at output voltages between 0.9 V and 6 V (with 100% duty cycle mode). The output-voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable and open-drain power-good pins. In power save mode, the device shows quiescent current of about 17 µA from VIN. Power save mode which is entered automatically and seamlessly if the load is small, maintains high efficiency over the entire load range. In shutdown mode, the device is turned off and shutdown current consumption is less than 2 µA. The device is packaged in a 16-pin VQFN package measuring 3 × 3 mm (RGT).

DCS-Control™ topology
Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade: –40°C to 125°C operating junction temperature range
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
Input voltage range: 3 V to 17 V
Adjustable output voltage from 0.9 Vto 6 V
Pin-Selectable output voltage (nominal, +5%)
Programmable soft start and tracking
Seamless power save mode transition
Quiescent current of 17 µA (typ.)
Selectable operating frequency
Power good output
100% duty cycle mode
Short circuit protection
Over temperature protection
Pin-to-pin compatible with TPS62130A-Q1
Available in a 3-mm × 3-mm, VQFN-16 package
Create a custom design using the TPS62150A-Q1 with the WEBENCH^® Power Designer

Vin (min) (V)	3
Vin (max) (V)	17
Vout (min) (V)	3.3
Vout (max) (V)	3.3
Iout (max) (A)	1
Iq (typ) (mA)	0.017
Switching frequency (min) (kHz)	1250
Switching frequency (max) (kHz)	2500
Features	Enable, Light Load Efficiency, Output discharge, Power good, Synchronous Rectification, Tracking, Voltage Margining
Operating temperature range (°C)	-40 to 125
Rating	Automotive
TI functional safety category	Functional Safety-Capable
Regulated outputs (#)	1
Control mode	Constant on-time (COT), DCS-Control
Duty cycle (max) (%)	100
Type	Converter
