Описание

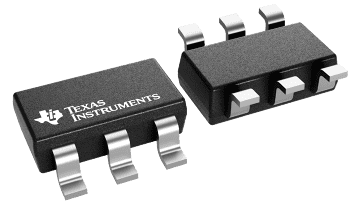

The LMR14010A is a PWM DC-to-DC buck (step-down) regulator. With a wide input range from 4 V to 40 V, it is suitable for a wide range of applications from industrial to automotive. An ultra-low 1-µA shutdown current prolongs battery life. Operating frequency is fixed at 0.7 MHz, allowing the use of small external components while minimizing output ripple voltage. Soft-start and compensation circuits are implemented internally, limiting the number of external components. The LMR14010A is optimized for up to 1-A load current. It has a 0.765-V nominal feedback voltage. The device has built-in protection features such as pulse-by-pulse current limit, thermal sensing and shutdown due to excessive power dissipation. The LMR14010A is available in a low profile TSOT-6L package (2.9 mm × 1.6 mm × 0.85 mm).

Input Voltage Range: 4 V to 40 V with Transient Protection to 45 V
0.7-MHz Switching Frequency
Ultra-High Efficiency at Light Load with Eco-mode™
Low Dropout Operation
Output Current up to 1 A
Precision Enable Input
Overcurrent Protection
Internal Compensation
Internal Soft-Start
Small Overall Solution Size (TSOT-6L Package)
Create a Custom Design Using the LMR14010A With the WEBENCH^® Power Designer

Vin (min) (V)	4
Vin (max) (V)	40
Vout (min) (V)	0.8
Vout (max) (V)	30
Iout (max) (A)	1
Iq (typ) (mA)	0.03
Switching frequency (min) (kHz)	700
Switching frequency (max) (kHz)	700
Features	Enable, Light Load Efficiency, Over Current Protection, Pre-Bias Start-Up, Soft Start Fixed, UVLO Fixed
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Regulated outputs (#)	1
Control mode	current mode
Duty cycle (max) (%)	96
Type	Converter
