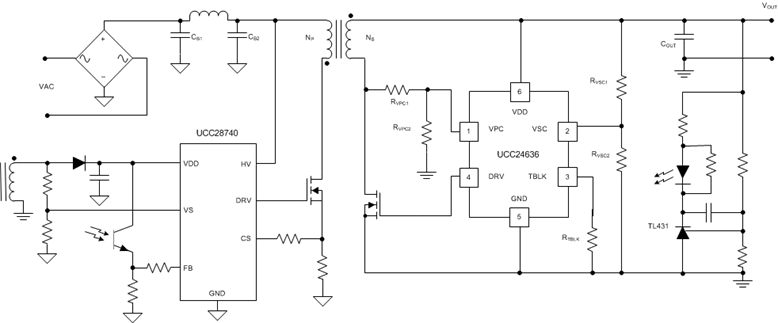

The UCC24636 SR is a compact, 6-pin secondary-side synchronous rectifier MOSFET controller and driver for high efficiency Flyback converters operating in Discontinuous (DCM) and Transition mode (TM). Unlike traditional SR controllers which measure the SR MOSFET drain voltage, UCC24636 implements a volt-second balance control method to determine the turn off transition of the SR MOSFET; hence, SR conduction time is independent of the MOSFET RDSON, parasitic inductance or ringing allowing flexibility to designers in component slelction and PCB layout. This control method enables maximum SR conduction time and highest rectifier efficiency for a given MOSFET. The controller has built in intelligence to detect converter no load operation and automatically enters standby mode. While in standby mode, it disables the SR MOSFET and lowers its bias supply current to 110µA to further reduce overall system standby power consumption. The wide VDD operating range for the controller allows direct bias from the converter output for fixed or variable output voltage designs. This eliminates the need for an auxilliary winding on the main transformer, which simplifies the circuit design and reduces the cost.

Secondary-Side SR Controller Optimized for
5-V to 24-V Output Discontinuous/Transition Mode
Only Flyback Converters
Volt-Second Balance Control Enables Highest
Rectifier Efficiency
Compatible with PSR and SSR Flyback
Controllers
Ultra Low 110-µA Standby Current Consumption
Auto-Detect Standby Mode Disables SR Switching
for Lower No-Load
Power Consumption
SR Turn-Off Independent of R_DSON and Parasitic
Inductance
Operating Frequency Up to 130 kHz
Wide VDD Range from 3.6 V to 28 V
Adaptive Gate Drive Clamp
Open and Short Pin Fault Protection

Topology	CCM, DCM
UVLO thresholds on/off (V)	4/3.6
Switching frequency (max) (kHz)	130
Features	100uA standby current operation, Auto-detect standby mode, Synchronous Rectifier, Volt-second balancing
Operating temperature range (°C)	-40 to 125
Control mode	Volt-sec balance
Device type	Controllers
Rating	Catalog
