Описание

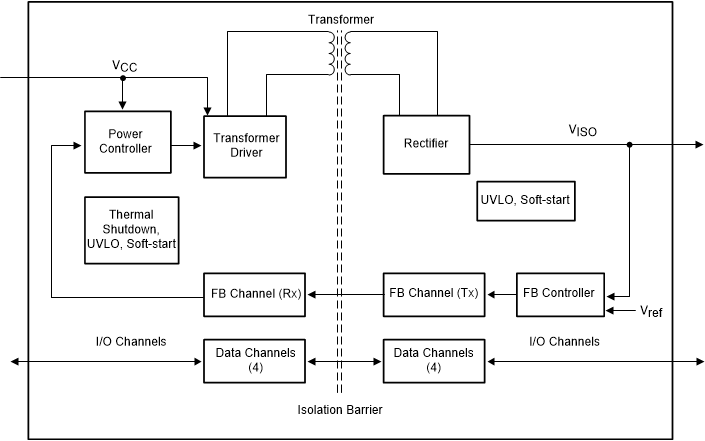

The ISOW784x is a family of high-performance, quad-channel reinforced digital isolators with an integrated high-efficiency power converter. The integrated DC-DC converter provides up to 650 mW of isolated power at high efficiency and can be configured for various input and output voltage configurations. Therefore these devices eliminate the need for a separate isolated power supply in space-constrained isolated designs.

100 Mbps data rate
Robust isolation barrier:
- >100-Year projected lifetime at 1 kV_RMS working voltage
- Up to 5000 V_RMS isolation rating
- Up to 10 kV_PK surge capability
- ±100 kV/µs minimum CMTI
Integrated high-efficiency DC-DC converter with on-chip transformer
3-V to 5.5-V Wide input supply range
Regulated 5-V or 3.3-V output
Up to 0.65-W output power
5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA
3.3 V to 3.3 V: Available load current ≥ 75 mA
3.3 V to 5 V: Available load current ≥ 40 mA
Soft-start to limit inrush current
Overload and short-circuit protection
Thermal shutdown
Default output: High and Low options
Low propagation delay: 13 ns Typ (5-V supply)
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
- Low emissions
16-pin Wide SOIC package
Extended temperature range: –40°C to +125°C
Safety-related certifications:
- 7071-V_PK reinforced isolation per DIN V VDE V 0884-11:2017-01
- 5000-V_RMS isolation for 1 minute per UL 1577
- CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 60601-1 end equipment standards
- CQC Approval per GB4943.1-2011
- TUV Certification according to EN 60950-1 and EN 61010-1

Integrated isolated power	Yes
Number of channels	4
Forward/reverse channels	4 forward / 0 reverse
Data rate (max) (MBits)	100
Rating	Catalog
Current consumption per channel (DC) (typ) (mA)	5
Current consumption per channel (1 Mbps) (typ) (mA)	5.75
Operating temperature range (°C)	-40 to 125
Default output	High, Low
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	3
Propagation delay time (typ) (µs)	0.013
CMTI (min) (V/µs)	100000
Isolation rating	Basic
Surge isolation voltage (VIOSM) (VPK)	10000
Transient isolation voltage (VIOTM) (VPK)	7071
Withstand isolation voltage (VISO) (Vrms)	5000
Working isolation voltage (VIOWM) (Vrms)	1000
