TPS8804 Texas instruments

TPS8804

Уточнить цену

TPS8804

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

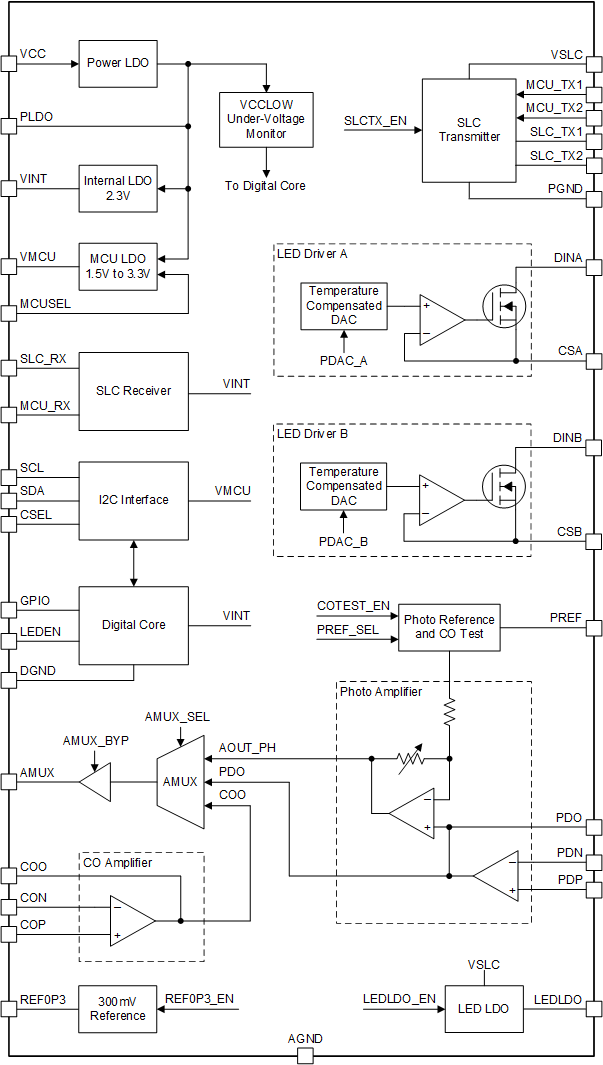

The TPS8804 integrates all of the amplifiers and drivers required for a dual-wave photoelectric smoke detection and carbon monoxide detection system. Its high flexibility is ideal for smoke detection systems where precision and power consumption are critical.

Photo Chamber AFE
- Dual 8-bit programmable current LED drivers
- Temperature compensation of LED current
- Ultra-low offset op-amp for photodiodes
- Programmable and bypassable gain stage
Carbon Monoxide Sensor AFE
- Ultra-low offset gain stage
- Programmable gain and reference
Power Management
- Programmable LDO for external microcontroller
SLC interface transmitter and receiver
Ultra-low power consumption
I²C serial interface
Wide input voltage range

Number of input channels	2
Features	2 LED drivers, 1 PD amp, CO amp, SLC interface, LDO
Operating temperature range (°C)	-40 to 85
Vs (min) (V)	2.6
Vs (max) (V)	15.6
Interface type	I2C
Rating	Catalog
