Описание

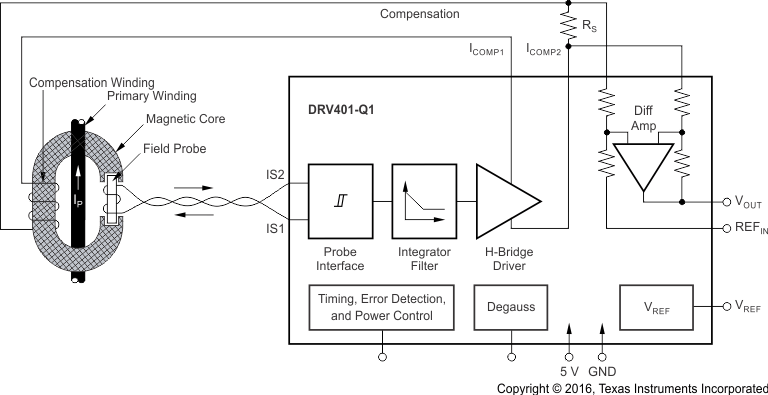

The DRV401-Q1 device is fully qualified for automotive applications and is suitable for motor control drive and battery monitoring systems.When used with a magnetic sensor, the DRV401-Q1 monitors ac and dc currents to high accuracy. Provided functions include: probe excitation, signal conditioning of the probe signal, signal loop amplifier, an H-bridge driver for the compensation coil, and an analog signal output stage that provides an output voltage proportional to the primary current. It offers overload and fault detection, as well as transient noise suppression.The DRV401-Q1 device directly drives the compensation coil or connects to external power drivers. Therefore, the DRV401-Q1 combines with sensors to measure small to large currents.To maintain the highest accuracy, the DRV401-Q1 demagnetizes (degausses) the sensor at power-up and on demand.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 1C
- Device CDM ESD Classification Level C6
Single-Supply: 5-V
Power Output: H-Bridge
Designed for Driving Inductive Loads
Excellent DC Precision
Wide System Bandwidth
High-Resolution, Low-Temperature Drift
Built-In Degauss System
Extensive Fault Detection
External High-Power Driver Option
Compact Footprint

Number of input channels	1
Features	AFE for Magnetic Current Sensing
Operating temperature range (°C)	-40 to 125
Vs (min) (V)	4.5
Vs (max) (V)	5.5
Interface type	Analog voltage
Rating	Automotive
