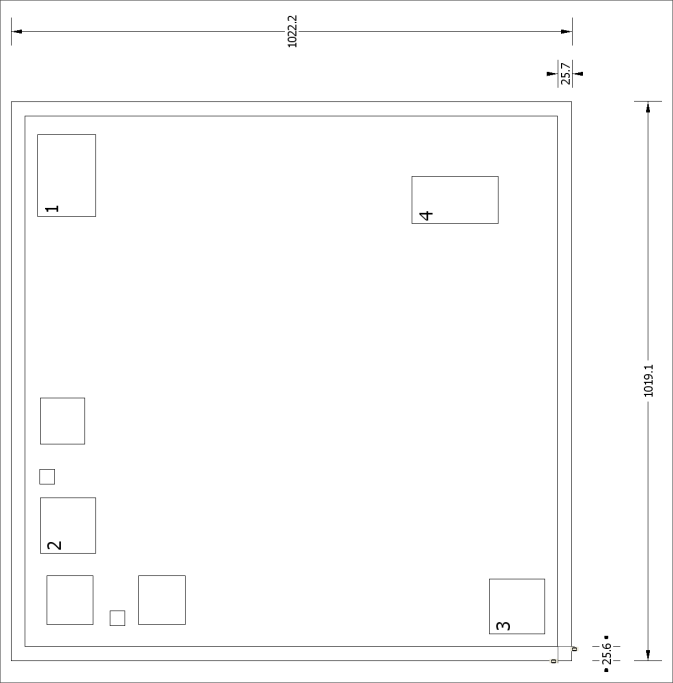

TL431-DIE Texas instruments

TL431-DIE

Уточнить цену

TL431-DIE

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The TL431-DIE is a three-terminal adjustable shunt regulator. This device has a typical output impedance. Active output circuitry provides a very sharp turnon characteristic, making the device an excellent replacement for Zener diodes and other types of references in applications such as onboard regulation, adjustable power supplies, and switching power supplies.

Low Output Noise
Typical Output Impedance
Sink Current Capability
Adjustable Output Voltage

VO (V)	2.495
Initial accuracy (max) (%)	0.5, 1, 2
VO adj (min) (V)	2.495
VO adj (max) (V)	36
Iz for regulation (min) (µA)	400
Reference voltage (V)	Adjustable
Rating	Military
Temp coeff (max) (ppm/°C)	92
Operating temperature range (°C)	25 to 25
Iout/Iz (max) (mA)	100
