Описание

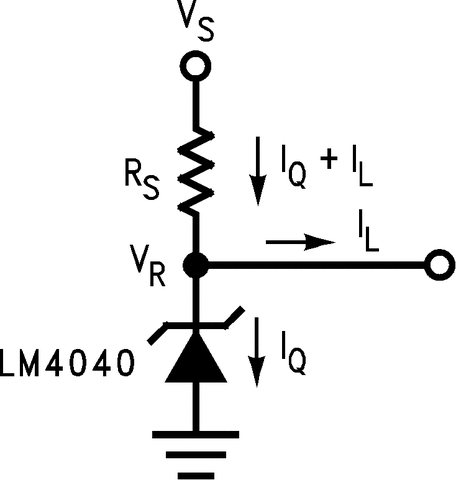

Ideal for space-critical applications, the LM4040-N precision voltage reference is available in the sub-miniature SC70 and SOT-23 surface-mount package. The advanced design of the LM4040-N eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040-N easy to use. Further reducing design effort is the availability of several fixed reverse breakdown voltages: 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V. The minimum operating current increases from 60 µA for the 2.5-V LM4040-N to 100 µA for the 10-V LM4040-N. All versions have a maximum operating current of 15 mA. The LM4040-N uses a fuse and Zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. Also available is the LM4041-N with two reverse breakdown voltage versions: adjustable and 1.2 V. See the LM4041-N data sheet (SNOS641).

SOT-23 AEC Q-100 Grades 1 and 3 available
Small Packages: SOT-23, TO-92, and SC70
No Output Capacitor Required
Tolerates Capacitive Loads
Fixed Reverse Breakdown Voltages of 2.048 V,
2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V
Key Specifications (2.5-V LM4040-N)
- Output Voltage Tolerance (A Grade,
  25°C): ±0.1% (Maximum)
- Low Output Noise (10 Hz to 10 kHz):
  35 µV_rms (Typical)
- Wide Operating Current Range: 60 µA
  to 15 mA
- Industrial Temperature Range: –40°C
  to 85°C
- Extended Temperature Range: –40°C
  to 125°C
- Low Temperature Coefficient: 100 ppm/°C
  (Maximum)

VO (V)	2.5, 3
Initial accuracy (max) (%)	0.1, 0.2, 0.5, 1, 2
VO adj (min) (V)	2.048
VO adj (max) (V)	3
Iz for regulation (min) (µA)	60, 62, 68, 74, 91, 100
Reference voltage (V)	Fixed
Rating	Automotive
TI functional safety category	Functional Safety-Capable
Temp coeff (max) (ppm/°C)	100, 150
Operating temperature range (°C)	-40 to 125
Iout/Iz (max) (mA)	15
