Описание

The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

Adjustable 4V to 6V
Low Temperature Coefficient
Wide Operating Current of 600 μA to 10 mA
0.6Ω Dynamic Impedance
Ensured Temperature Stability

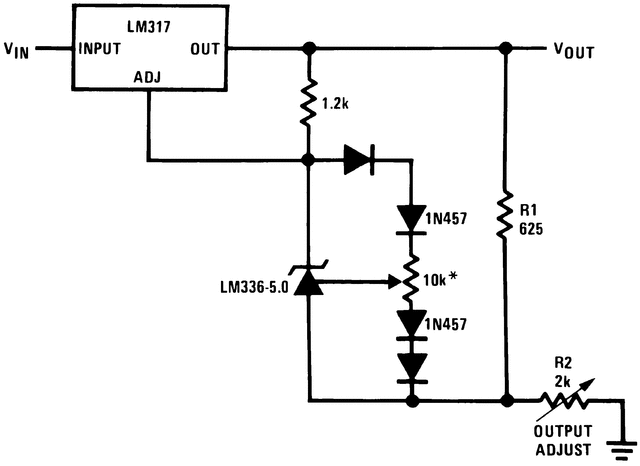

Easily Trimmed for Minimum Temperature Drift
Fast Turn-On
Three Lead Transistor Package

All trademarks are the property of their respective owners.

Product type	Power Management
Die or wafer type	Wafer Sale
Rating	Military
Operating temperature range (°C)	-55 to 125
