Описание

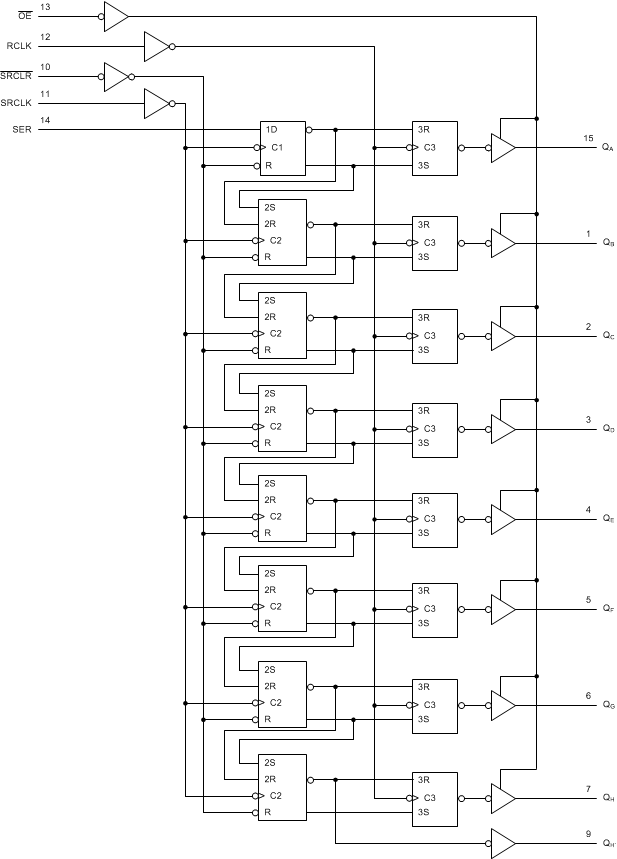

The SN74HC595B devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the all outputs are in the high-impedance state except QH.

8-Bit Serial-In, Parallel-Out Shift Registers
Available in Ultra Small Logic QFN package(0.5 mm
max height)
Over-Voltage Tolerant on Inputs Independent of V_cc
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Can Drive Up to 15
LSTTL Loads
Low Power Consumption: 80-µA (Maximum) I_CC
t_pd = 13 ns (Typical)
±6-mA Output Drive at 5 V
Low Input Current: 1 µA (Maximum)
Shift Register Has Direct Clear
-55^oC to 125^oC Operating Temperature

Configuration	Serial-in, Parallel-out
Bits (#)	8
Technology family	HC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Standard CMOS
Output type	3-State
Clock frequency (MHz)	24
IOL (max) (mA)	7.8
IOH (max) (mA)	-7.8
Supply current (max) (µA)	160
Features	Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode
Operating temperature range (°C)	-55 to 125
Rating	Catalog
