Описание

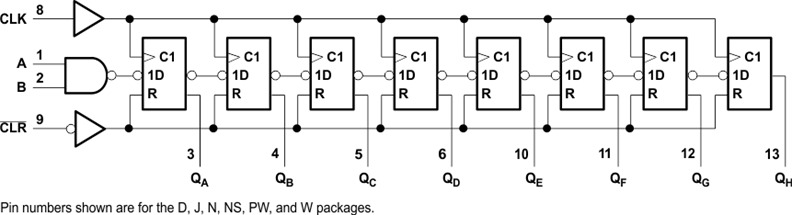

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.

Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up to 10 LSTTL Loads
Low Power Consumption, 80-µA Maximum I_CC
Typical t_pd = 20 ns
±4-mA Output Drive at 5 V
Low Input Current of 1-µA Maximum
AND-Gated (Enable/Disable) Serial Inputs
Fully Buffered Clock and Serial Inputs
Direct Clear
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include
Testing of All Parameters.

Configuration	Serial-in, Parallel-out
Bits (#)	8
Technology family	HC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Standard CMOS
Output type	Push-Pull
Clock frequency (MHz)	24
IOL (max) (mA)	5.2
IOH (max) (mA)	-5.2
Supply current (max) (µA)	160
Features	Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode
Operating temperature range (°C)	-55 to 125
Rating	Space
