CD74HC595 Texas instruments

CD74HC595

Уточнить цену

CD74HC595

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

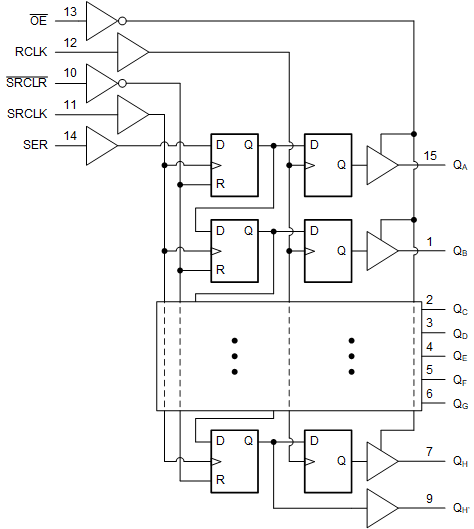

Configuration	Serial-in, Parallel-out
Bits (#)	8
Technology family	HC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Standard CMOS
Output type	3-State
Clock frequency (MHz)	24
IOL (max) (mA)	7.8
IOH (max) (mA)	-7.8
Supply current (max) (µA)	160
Features	Balanced outputs, High speed (tpd 10-50ns), Output register, Positive input clamp diode
Operating temperature range (°C)	-55 to 125
Rating	Catalog
