Описание

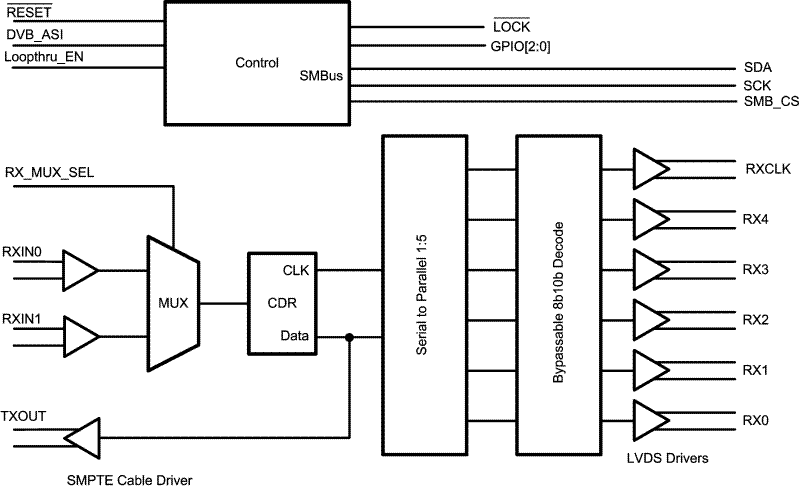

The LMH0341/0041/0071/0051 SDI Deserializers are part of TI’s family of FPGA-Attach SER/DES products supporting 5-bit LVDS interfaces with FPGAs. When paired with a host FPGA the LMH0341 automatically detects the incoming data rate and decodes the raw 5-bit data words compliant to any of the following standards: DVB-ASI, SMPTE 259M, SMPTE 292M, or SMPTE 424M. See for details on which Standards are supported per device. The interface between the LMH0341 and the host FPGA consists of a 5-bit wide LVDS bus, an LVDS clock and an SMBus interface. No external VCOs or clocks are required. The LMH0341 CDR detects the frequency from the incoming data stream, generates a clean clock and transmits both clock and data to the host FPGA. The LMH0341, LMH0041 and LMH0071 include a serial reclocked loopthrough with integrated SMPTE compliant cable driver. Refer to for a complete listing of single channel deserializers offered in this family. The FPGA-Attach SER/DES product family is supported by a suite of IP which allows the design engineer to quickly develop video applications using the SER/DES products. The product is packaged in a physically small 48 pin WQFN package.

5-Bit LVDS Interface
No External VCO or Clock Required
Reclocked Serial Loopthrough With Cable Driver
Powerdown Mode
3.3V SMBus Configuration Interface
Small 48-Pin WQFN Package
Industrial Temperature range: -40°C to +85°C

Key Specifications

Output compliant with SMPTE 259M-C, SMPTE 292M, SMPTE 424M and DVB-ASI
Typical power dissipation: 590 mW (loopthrough disabled, 3G datarate)
0.6 UI Minimum Input Jitter Tolerance

All trademarks are the property of their respective owners. TRI-STATE is a trademark of Texas Instruments.

Function	Deserializer
Supply voltage (V)	2.5, 3.3
Power consumption (mW)	450
Data rate (max) (MBits)	270
Control interface	Pin/SMBus
Operating temperature range (°C)	-40 to 85
