SN65LBC175A-EP Texas instruments

SN65LBC175A-EP

Уточнить цену

SN65LBC175A-EP

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

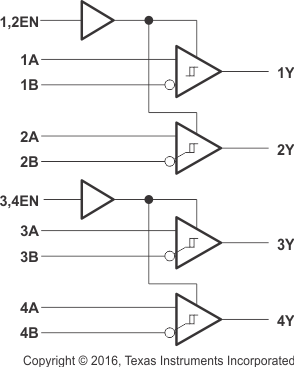

The SN65LBC175A-EP is a quadruple differential line receiver with 3-state outputs, designed for TIA/EIA-485 (RS-485), TIA/EIA-422 (RS-422), and ISO 8482 (Euro RS-485) applications. This device is optimized for balanced multipoint bus communication at data rates up to and exceeding 50 million bits per second. The transmission media may be twisted-pair cables, printed-circuit board traces, or backplanes. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling to the environment. The receiver operates over a wide range of positive and negative common-mode input voltages, and features ESD protection to 6 kV, making it suitable for high-speed multipoint data transmission applications in harsh environments. These devices are designed using LinBiCMOS®, facilitating low power consumption and robustness. Two EN inputs provide pair-wise enable control, or these can be tied together externally to enable all four drivers with the same signal.

Designed for TIA/EIA-485, TIA/EIA-422 and ISO 8482 Applications
Signaling Rates⁽¹⁾ Exceeding 50 Mbps
Fail-Safe in Bus Short-Circuit, Open-Circuit, and Idle-Bus Conditions
ESD Protection on Bus Inputs Exceeds 6 kV
Common-Mode Bus Input Range –7 V to 12 V
Propagation Delay Times < 18 ns
Low Standby Power Consumption < 32 µA
Pin-Compatible Upgrade for MC3486, DS96F175, LTC489, and SN75175

Number of receivers	4
Number of transmitters	0
Supply voltage (nom) (V)	5
Signaling rate (max) (MBits)	50
Fault protection (V)	-10 to 15
Common-mode range (V)	-7 to 12
Number of nodes	32
Isolated	No
Supply current (max) (µA)	32000
Rating	HiRel Enhanced Product
Operating temperature range (°C)	-55 to 125
