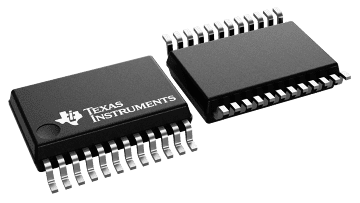

TRS208 Texas instruments

TRS208

Уточнить цену

TRS208

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The TRS208 device consists of four line drivers, four line receivers, and a dual charge-pump circuit with ±15-kV HBM ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.

ESD Protection for RS-232 I/O Pins
- ±15-kV Human-Body Model (HBM)
Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
Operates at 5-V V_CC Supply
Four Drivers and Four Receivers
Operates up to 120 kbit/s
External Capacitors . . . 4 × 0.1 µF
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
APPLICATIONS
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment

Drivers per package	4
Receivers per package	4
Logic voltage (min) (V)	5
Data rate (max) (MBits)	0.12
Main supply voltage (nom) (V)	5
ESD HBM (kV)	15
Rating	Catalog
Operating temperature range (°C)	-40 to 85, 0 to 70
Vout (typ) (V)	9
