Описание

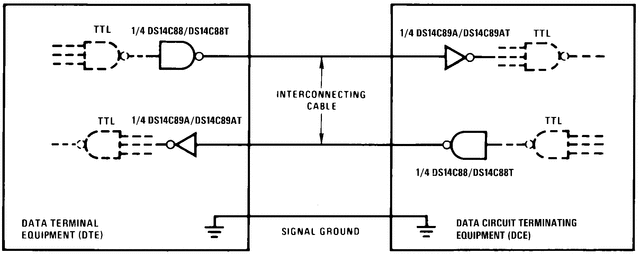

The DS14C88, pin-for-pin compatible to the DS1488/MC1488, is a quad line drivers designed to interface data terminal equipment (DTE) with data circuit-terminating equipment (DCE). This device translates standard TTL/CMOS logic levels to levels conforming to EIA-232-D and CCITT V.28 standards. The device is fabricated in low threshold CMOS metal gate technology. The device provides very low power consumption compared to its bipolar equivalents: 500 μA (DS14C88) versus 25 mA (DS1488). The DS14C88 simplifies designs by eliminating the need for external slew rate control capacitors. Slew rate control in accordance with EIA-232D is provided on-chip, eliminating the output capacitors.

Meets EIA-232D and CCITT V.28 Standards
LOW Power Consumption
Wide Power Supply Range: ±5V to ±12V
Available in SOIC Package

All trademarks are the property of their respective owners.

Drivers per package	4
Receivers per package	0
Logic voltage (min) (V)	5
Data rate (max) (MBits)	0.12
Main supply voltage (nom) (V)	5, 12
ESD HBM (kV)	1
Rating	Catalog
Operating temperature range (°C)	0 to 70
Vout (typ) (V)	10.5
