Описание

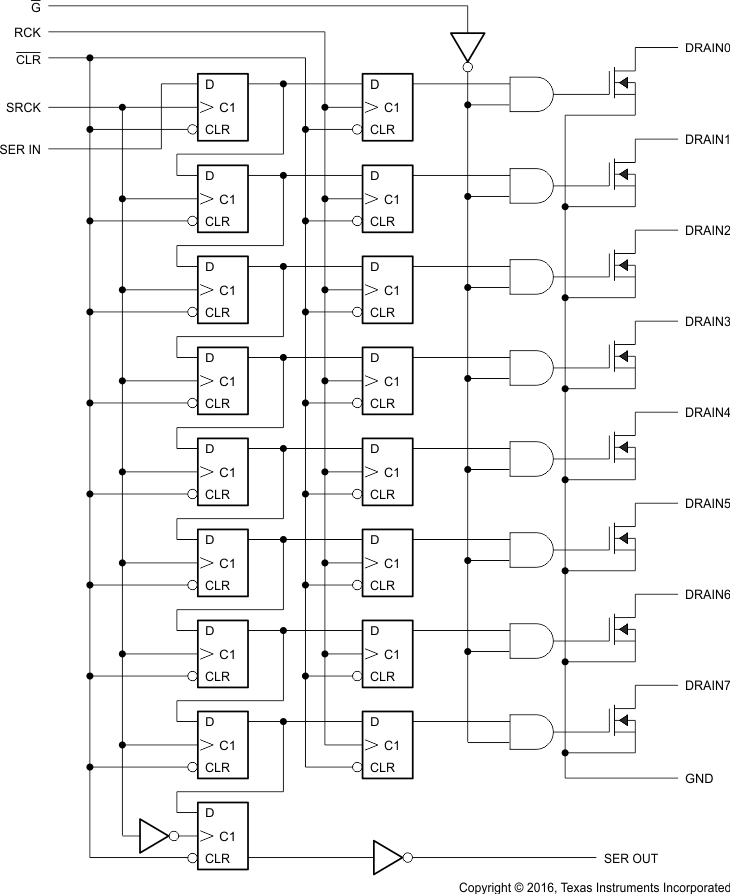

The TLC6C598 device is a monolithic, medium-voltage, low-current power 8-bit shift register designed for use in systems that require relatively moderate load power, such as LEDs. This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks are provided for both the shift and storage register. Outputs are low-side, open-drain DMOS transistors with output ratings of 40 V and 50 mA continuous sink-current OR 200-mA PWM current with single-pulse duration less than 1 ms and average current less than 50 mA capabilities when VCC = 5 V. The device contains built-in thermal shutdown protection and provides up to 2000 V of ESD protection when tested using the human-body model and the 200 V machine model. The TLC6C598 characterization is for operation over the operating ambient temperature range of −40°C to 105°C.

Wide V_CC From 3 V to 5.5 V
Output Maximum Rating of 40 V
Eight Power DMOS Transistor Outputs of 50-mA
Continuous Current With V_CC = 5 V or 200-mA
PWM Current With Single-Pulse Duration Less
Than 1 ms and Average Current Less Than
50 mA
Thermal Shutdown Protection
Enhanced Cascading for Multiple Stages
All Registers Cleared With Single Input
Low Power Consumption
Slow Switching Time (t_r and t_f), Which Helps
Significantly With Reducing EMI
16-Pin TSSOP-PW Package

Number of channels	8
LED current per channel (mA)	50
LED configuration	Parallel
Program memory	No
Topology	Linear
Programmable ramp control	No
Vin (min) (V)	3
Vin (max) (V)	5.5
Iout (max) (A)	0.4
Features	Serial interface
Iq (typ) (mA)	0.13
Shutdown current (ISD) (typ) (µA)	0.15
Operating temperature range (°C)	-40 to 105
Rating	Catalog
