Описание

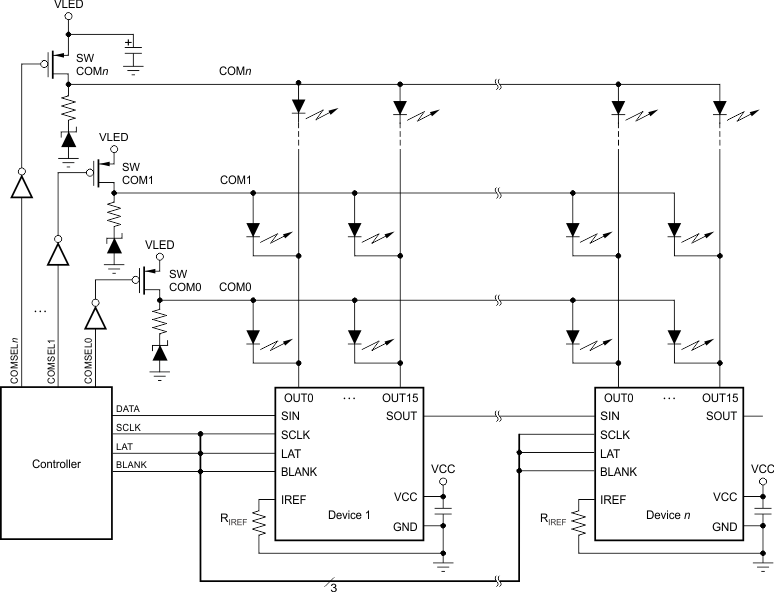

The TLC59283 is a 16-channel, constant-current sink light-emitting diode (LED) driver. Each channel can be individually controlled with a simple serial communications protocol that is compatible with 3.3-V or 5-V CMOS logic levels, depending on the operating VCC. When the serial data buffer is loaded, a LAT rising edge transfers the data to the OUT outputs. The BLANK pin can be used to turn off all OUT outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor. Each constant-current output has a pre-charge field-effect transistor (FET) that can reduce ghosting on the multiplexing (dynamic) drive LED display. Multiple TLC59283s can be cascaded together to control additional LEDs from the same processor.

16-Channel, Constant-Current Sink Output with On and Off Control
Constant-Current Sink Capability:
35 mA (V_CC ≤ 3.6 V), 45 mA (V_CC > 3.6 V)
LED Power-Supply Voltage: Up to 10 V
V_CC = 3 V to 5.5 V
Constant-Current Accuracy:
- Channel-to-Channel:
  ±1.4% (typ), ±3% (max)
- Device-to-Device: ±2% (typ), ±4% (max)
CMOS Logic Level I/O
Data Transfer Rate: 35 MHz
BLANK Pulse Width: 50 ns
Pre-Charge FET for Ghosting Reduction
Grouped Switching Delay for Noise Reduction
Operating Temperature: –40°C to +85°C

Number of channels	16
LED current per channel (mA)	35
Vin (min) (V)	3
Vin (max) (V)	5.5
Features	Constant current, Serial interface
Operating temperature range (°C)	-40 to 85
Rating	Catalog
