Описание

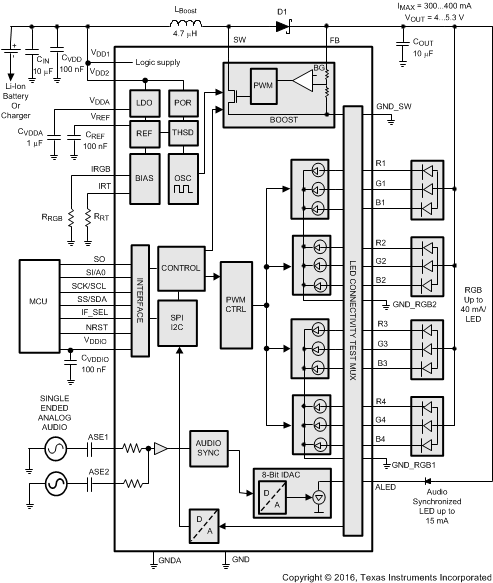

The LP55281 device is a quadruple RGB LED driver for handheld devices. It can drive 4 RGB LED sets and a single fun-light LED. The boost DC-DC converter drives high current loads with high efficiency. The RGB driver can drive individual color LEDs or RGB LEDs powered from boost output or external supply. Built-in audio synchronization feature allows user to synchronize the fun-light LED to audio inputs. The flexible SPI or I2C interface allows easy control of LP55281. A small YZR0036 or YPG0036 package, together with minimum number of external components, is a best fit for handheld devices. The LP55281 also has an LED test feature, which can be used, for example, in production for checking the LED connections. For all available packages, see the orderable addendum at the end of the data sheet.

Audio Synchronization for a Single Fun-Light LED
Four PWM Controlled RGB LED Drivers
High-Efficiency Boost DC-DC Converter
SPI or I²C-Compatible Interface
Two Addresses in I²C-Compatible Interface
LED Connectivity Test Through the Serial Interface

Number of channels	13
LED current per channel (mA)	40
LED configuration	Parallel
Program memory	No
Topology	Boost
Programmable ramp control	Yes
Vin (min) (V)	3
Vin (max) (V)	5.5
Iout (max) (A)	0.4
Features	Current control, I2C control
Iq (typ) (mA)	0.35
Shutdown current (ISD) (typ) (µA)	1
Operating temperature range (°C)	-30 to 85
Rating	Catalog
