Описание

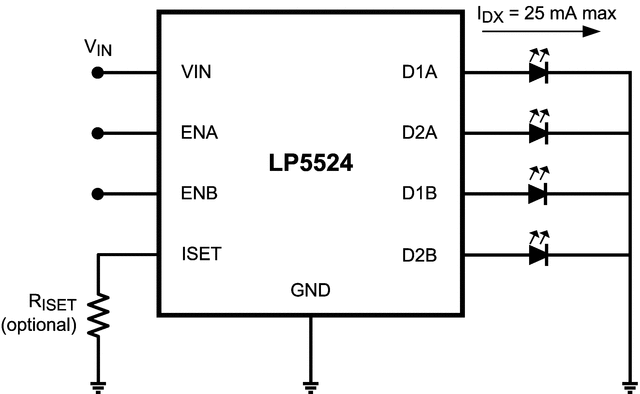

The LP5524 device is a highly integrated dual-zone LED driver that can drive up to four LEDs in parallel with a total output current of 100 mA. Regulated high-side internal current sources deliver excellent current and brightness matching in all LEDs. The LP5524 provides overcurrent protection and pulse-width modulation (PWM) control of four indicator LEDs without the need for external components. LED driver current sources are split into two independently controlled banks for driving secondary displays, keypad and indicator LEDs. Brightness control is achieved by applying PWM signals to each enable pin. Default LED current is factory-programmable and an optional external resistor can be used to set LED current to user programmable values. The LP5524 is available in a tiny, 9-pin, thin DSBGA package. For all available packages, see the orderable addendum at the end of the data sheet.

Wide Input Voltage Range: 2.7 V to 5.5 V
High-Side LED Driver
Drives Four LEDs With up to 25 mA per LED
0.4% Typical Current Matching
PWM Brightness Control
Overcurrent Protection
Fast Transient Response
Optional External ISET Resistor
Ultra-Small Solution Size:
- No External Components
- 9-Pin DSBGA Package with 0.4-mm pitch:
  - 1.24 mm × 1.24 mm × 0.6 mm (L × W × H, maximum)

Number of channels	4
LED current per channel (mA)	25
LED configuration	Parallel
Program memory	No
Topology	Linear
Programmable ramp control	No
Vin (min) (V)	2.7
Vin (max) (V)	5.5
Iout (max) (A)	0.1
Features	GPIO interface
Iq (typ) (mA)	0.17
Shutdown current (ISD) (typ) (µA)	0.2
Operating temperature range (°C)	-40 to 85
Rating	Catalog
