Описание

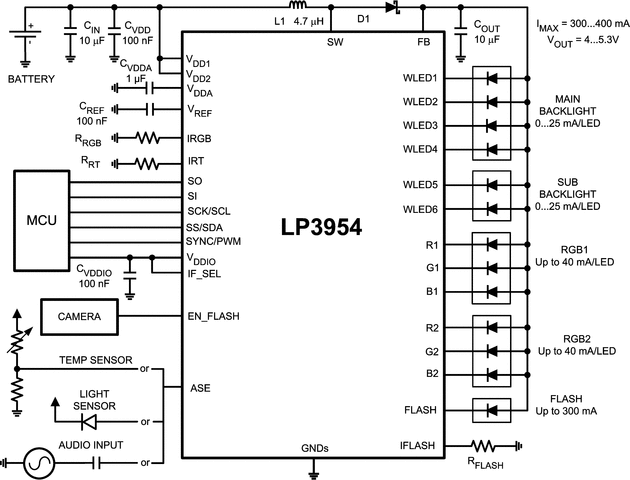

LP3954 is an advanced lighting management unit for handheld devices. It drives any phone lights including display backlights, RGB, keypad and camera flash LEDs. The boost DC-DC converter drives high current loads with high efficiency. White LED backlight drivers are high efficiency low voltage structures with excellent matching and automatic fade in/ fade out function. The new stand-alone command based RGB controller is feature rich and easy to configure. Built-in audio synchronization feature allows user to synchronize the color LEDs to audio input. Integrated high current driver can drive camera flash LED or motor/vibra. Internal ADC can be used for ambient light or temperature sensing. The flexible SPI/I2C interface allows easy control of LP3954. Small DSBGA package together with minimum number of external components is a best fit for handheld devices.

Audio Synchronization for Color/RGB LEDs
Command Based PWM Controlled RGB LED Drivers
High Current Driver for Flash LED With Built-in Timing
4+2 or 6 Low Voltage Constant Current White LED Drivers With Orogrammable 8-Bit Adjustment (0…25mA/LED)
High Efficiency Boost DC-DC Converter
SPI / I²C Compatible Interface
Possibility for External PWM Dimming Control
Possibility for Clock Synchronization for RGB Timing
Ambient Light and Temperature Sensing Possibility
Small Package – DSBGA, 3.0 x 3.0 x 0.6mm

All trademarks are the property of their respective owners.

Number of channels	13
LED current per channel (mA)	25.5
LED configuration	Parallel
Program memory	Yes
Topology	Boost
Programmable ramp control	Yes
Vin (min) (V)	3
Vin (max) (V)	7.2
Iout (max) (A)	0.4
Features	Analog/PWM mixed dimming, Constant current, I2C control
Iq (typ) (mA)	0.4
Shutdown current (ISD) (typ) (µA)	1
Operating temperature range (°C)	-30 to 85
Rating	Catalog
