Описание

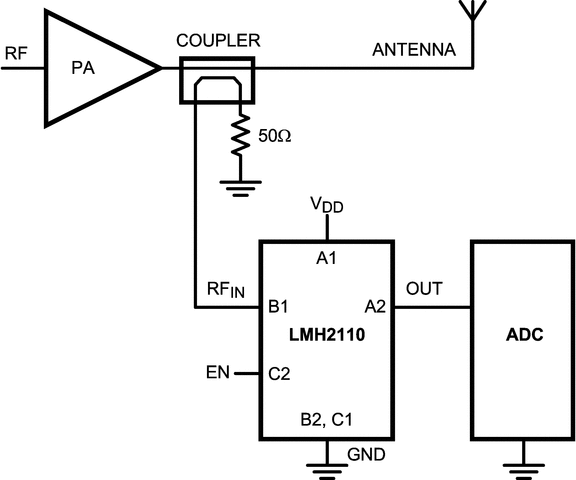

The LMH2110 is a 45-dB Logarithmic RMS power detector particularly suited for accurate power measurement of modulated RF signals that exhibit large peak-to-average ratios; that is, large variations of the signal envelope. Such signals are encountered in W-CDMA and LTE cell phones. The RMS measurement topology inherently ensures a modulation insensitive measurement. The device has an RF frequency range from 50 MHz to 8 GHz. It provides an accurate, temperature and supply insensitive output voltage that relates linearly to the RF input power in dBm. The LMH2110 device has excellent conformance to a logarithmic response, enabling easy integration by using slope and intercept only, reducing calibration effort significantly. The device operates with a single supply from 2.7 V to 5 V. The LMH2110 has an RF power detection range from –40 dBm to 5 dBm and is ideally suited for use in combination with a directional coupler. Alternatively, a resistive divider can be used. The device is active for EN = High; otherwise, it is in a low power-consumption shutdown mode. To save power and prevent discharge of an external filter capacitance, the output (OUT) is high-impedance during shutdown.

Wide Supply Range from 2.7 V to 5 V
Logarithmic Root Mean Square Response
45-dB Linear-in-dB Power Detection Range
Multi-Band Operation from 50 MHz to 8 GHz
LOG Conformance Better than ±0.5 dB
Highly Temperature Insensitive, ±0.25 dB
Modulation Independent Response, 0.08 dB
Minimal Slope and Intercept Variation
Shutdown Functionality
Tiny 6-Bump DSBGA Package

Frequency (min) (MHz)	50
Frequency (max) (MHz)	8000
Type	RMS
Supply voltage (min) (V)	2.7
Supply voltage (max) (V)	5
Supply current (µA)	4800
Number of channels	1
Dynamic range (typ) (dB)	45
Operating temperature range (°C)	-40 to 85
Rating	Catalog
