Описание

The LMX2487 device is a low power, high performance delta-sigma fractional-N PLL with an auxiliary integer-N PLL. It is fabricated using TI’s advanced process. With delta-sigma architecture, fractional spurs at lower offset frequencies are pushed to higher frequencies outside the loop bandwidth. The ability to push close in spur and phase noise energy to higher frequencies is a direct function of the modulator order. Unlike analog compensation, the digital feedback technique used in the LMX2487 is highly resistant to changes in temperature and variations in wafer processing. The LMX2487 delta-sigma modulator is programmable up to fourth order, which allows the designer to select the optimum modulator order to fit the phase noise, spur, and lock time requirements of the system. Serial data for programming the LMX2487 is transferred through a three-line, high-speed (20-MHz) MICROWIRE interface. The LMX2487 offers fine frequency resolution, low spurs, fast programming speed, and a single-word write to change the frequency. This makes it ideal for direct digital modulation applications, where the N-counter is directly modulated with information. The LMX2487 is available in a 24-lead 4.0 × 4.0 × 0.8 mm WQFN package.

Quadruple Modulus Prescaler for Lower Divides
- RF PLL: 16/17/20/21 or 32/33/36/37
- IF PLL: 8/9 or 16/17
Advanced Delta Sigma Fractional Compensation
- 12-Bit or 22-Bit Selectable Fractional Modulus
- Up to 4th Order Programmable Delta-Sigma
  Modulator
Improved Lock Times
- Fastlock / Cycle Slip Reduction With Single-
  Word Write to Change Frequencies
- Integrated Time-Out Counter

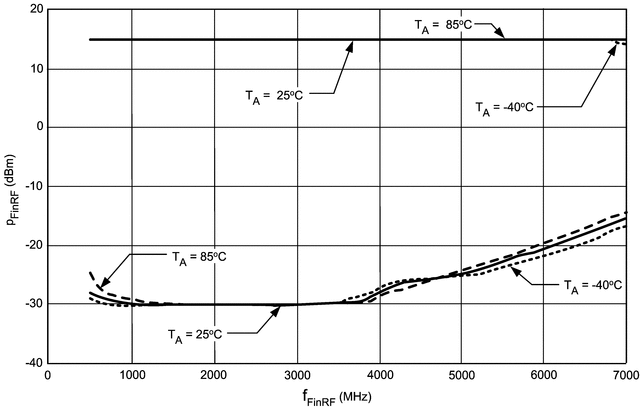

Wide Operating Range
- LMX2487 RF PLL: 1.0 GHz to 6.0 GHz
Useful Features
- Digital Lock Detect Output
- Hardware and Software Power-Down Control
- On-Chip Input Frequency Doubler
- RF Phase Comparison Detector Up to 50 MHz
- 2.5-V to 3.6-V Operation With I_CC = 8.5 mA

Integrated VCO	No
Output frequency (min) (MHz)	1000
Output frequency (max) (MHz)	6000
Normalized PLL phase noise (dBc/Hz)	-210
Current consumption (mA)	5.7
Features	Advanced delta-sigma fractional compensation, Cycle slip reduction, Dual PLL, Fastlock, Integrated timeout counter, On-chip input frequency doubler
1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz)	-104
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Lock time (µs) (typ)	Loop BW dependent
