Описание

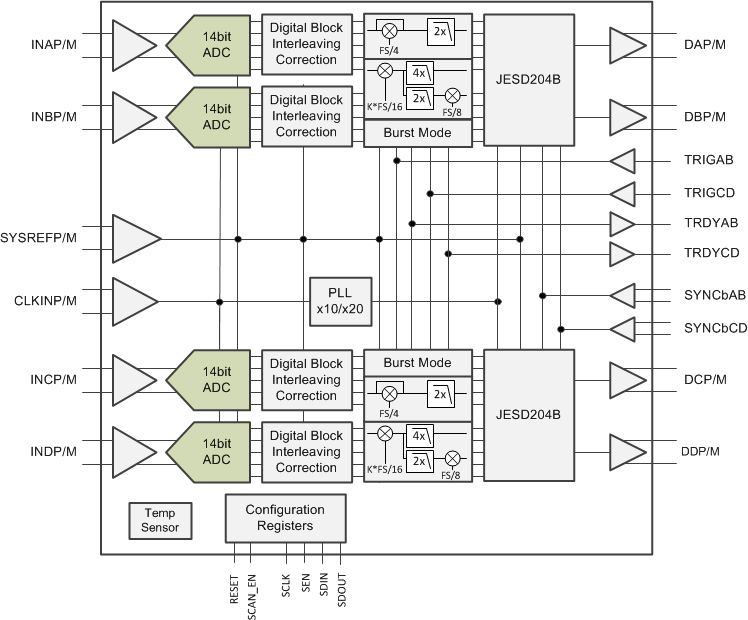

The ADS58J63 is a low-power, wide-bandwidth, 14-bit, 500-MSPS, quad-channel, telecom receiver device. The ADS58J63 supports a JESD204B serial interface with data rates up to 10 Gbps with one lane per channel. The buffered analog input provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy. The ADS58J63 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption. The digital signal processing block includes complex mixers followed by low-pass filters with decimate-by-2 and -4 options supporting up to 200-MHz receive bandwidth. The ADS58J63 also supports a 14-bit, 500-MSPS output in burst-mode making the device suitable for a DPD observation receiver. The JESD204B interface reduces the number of interface lines, thus allowing high system integration density. An internal phase locked loop (PLL) multiplies the incoming analog-to-digital converter (ADC) sampling clock to derive the bit clock, which is used to serialize the 14-bit data from each channel.

Quad Channel
14-Bit Resolution
Maximum Clock Rate: 500 MSPS
Input Bandwidth (3 dB): 900 MHz
On-Chip Dither
Analog Input Buffer with High-Impedance Input
Output Options:
- Rx: Decimate-by-2 and -4 Options with Low-
  Pass Filter
- 200-MHz Complex Bandwidth or 100-MHz
  Real Bandwidth Support
- DPD FB: Burst Mode with 14-Bit Output
1.9-V_PP Differential Full-Scale Input
JESD204B Interface:
- Subclass 1 Support
- 1 Lane per ADC Up to 10 Gbps
- Dedicated SYNC pin for pair of channels
Support for Multi-Chip Synchronization
72-Pin VQFN Package (10 mm × 10 mm)
Key Specifications:
- Power Dissipation: 675 mW/ch
- Spectral Performance (Un-decimated)
  - f_IN = 190 MHz IF at –1 dBFS:
    - SNR: 70.4 dBFS
    - NSD: –154.4 dBFS/Hz
    - SFDR: 86 dBc (HD2, HD3),
      95 dBFS (non HD2, HD3)
  - f_IN = 370 MHz IF at –3 dBFS:
    - SNR: 68.5 dBFS
    - NSD: –152.5 dBFS/Hz
    - SFDR: 81 dBc (HD2, HD3),
      86 dBFS (non HD2, HD3)

Number of input channels	4
Resolution (Bits)	14
Sample rate (max) (Msps)	500
Features	Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power Down
Analog input BW (MHz)	900
SFDR (typ) (dB)	89
SNR (typ) (dB)	70.8
Power consumption (typ) (mW)	2700
Operating temperature range (°C)	-40 to 85
Rating	Catalog
