Описание

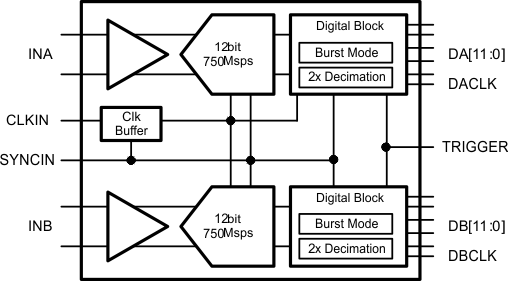

The ADS54T02 is a high linearity dual channel 12-bit, 750 MSPS analog-to-digital converter (ADC) easing front end filter design for wide bandwidth receivers. The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source as well as providing a high-impedance input. Two output modes are available for the output data – it can be decimated by two or the data can be output in burst mode. The burst mode output is designed specifically for DPD feedback applications where high resolution output data is available for a short period of time. Designed for high SFDR, the ADC has low-noise performance and outstanding spurious-free dynamic range over a large input-frequency range. The device is available in a 196pin BGA package and is specified over the full industrial temperature range (–40°C to 85°C).

Dual Channel
12-Bit Resolution
Maximum Clock Rate: 750 Msps
Low Swing Fullscale Input: 1.0 Vpp
Analog Input Buffer with High Impedance Input
Input Bandwidth (3dB): >1.2GHz
Data Output Interface: DDR LVDS
196-Pin BGA Package (12×12mm)
Power Dissipation: 1050mW/ch
Performance at f_in = 230 MHz IF
- SNR: 60.7 dBFS
- SFDR: 78 dBc
Performance at f_in = 700 MHz IF
- SNR: 58.9 dBFS
- SFDR: 73 dBc
Receive Mode: 2x Decimation with Low Pass or
High Pass Filter
Feedback Mode: Burst Mode Output for Full
Bandwidth DPD Feedback

Number of input channels	2
Resolution (Bits)	12
Sample rate (max) (Msps)	750
Features	Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power Down
Analog input BW (MHz)	1200
SFDR (typ) (dB)	74
SNR (typ) (dB)	60.9
Power consumption (typ) (mW)	2100
Operating temperature range (°C)	-40 to 85
Rating	Catalog
