Описание

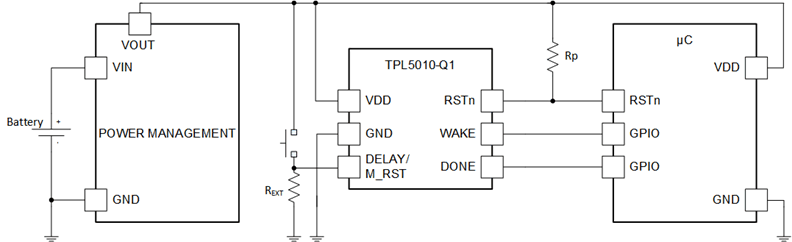

The TPL5010-Q1 Nano Timer is a low power, AEC-Q100 qualified timer with a watchdog feature ideal for system wake up in duty cycled or battery powered applications. In such systems the microcontroller timer can be used for system wake-up, but if the timer sleep current is high, up to 60-80% of the total system current can be consumed by the microcontroller timer in this sleep mode. Consuming only 35 nA, the TPL5010-Q1 can replace the functionality of the integrated microcontroller timer and allow the microcontroller to be placed in a much lower power mode. Such power savings extend the operating life of batteries and enable the use of significantly smaller batteries making the TPL5010-Q1 ideal for power sensitive applications.. The TPL5010-Q1 provides selectable timing intervals from 100 ms to 7200 s and is designed for interrupt-driven applications. Some standards (such as EN50271) require implementation of a watchdog for safety and the TPL5010-Q1 realizes this watchdog function at almost no additional power consumption. The TPL5010-Q1 is available in a 6-pin SOT23 package.

Qualified for Automotive Applications
AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C5
Current Consumption of 35 nA (typ) at 2.5 V
Supply Voltage from 1.8 V to 5.5 V
Selectable Time Intervals 100 ms to 7200 s
Timer Accuracy 1% (Typical)
Resistor Selectable Time Interval
Watchdog Functionality
Manual Reset
TPL5x10Q Family of AEC-Q100 Nano-Power System Timers
TPL5010-Q1 - Supply Current 35 nA
- Low Power Timer
- Watchdog Function
- Programmable Delay Range
- Manual Reset
TPL5110-Q1 - Supply Current 35 nA
- Low Power Timer
- MOS-Driver
- Programmable Delay Range
- Manual Reset
- One-Shot Feature

Function	Nanotimer
Iq (typ) (mA)	0.000035
Features	Low-power timer, Manual reset, Programmable delay range, Watchdog function
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	1.8
