Описание

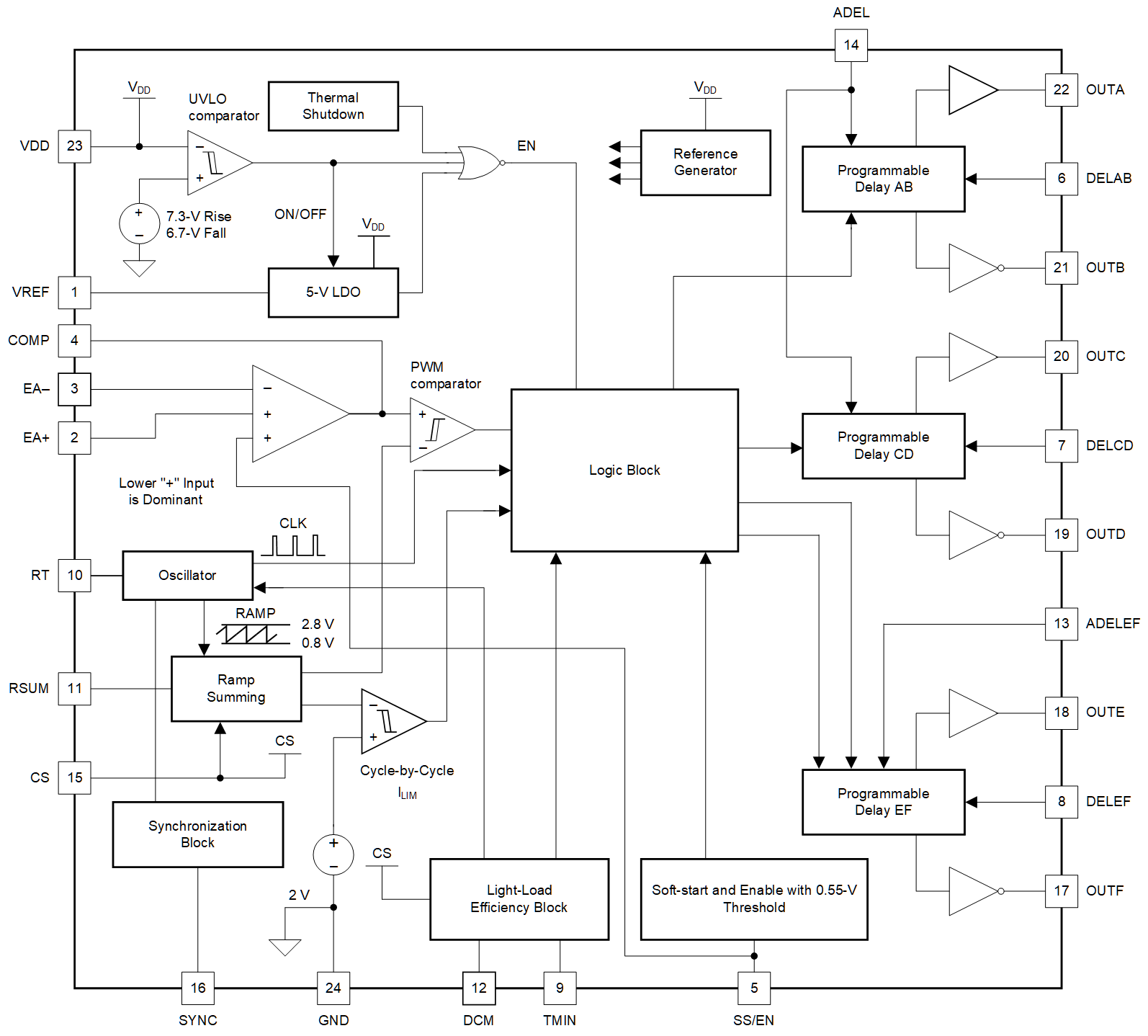

The UCC28951-Q1 controller is an enhanced version of the UCC28950-Q1. It is a fully compatible drop-in replacement for the UCC28950-Q1. Refer to application note Making the Correct Choice: UCC28950-Q1 or UCC28951-Q1 to determine which controller to use.The UCC28951-Q1 uses advanced control of the full-bridge in addition to active control of the synchronous rectifier (SR) output stage.Programmable delays ensure ZVS operation over a wide range of operating conditions, while the load current naturally tunes the switching delays of the secondary-side synchronous rectifiers(SR). This functionality maximizes overall system efficiency.The 24-pin, TSSOP package complies with RoHS requirements.

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to +125°C ambient operating temperature range
- Device HBM ESD classification level H2
- Device CDM ESD classification level C3B
Enhanced zero-voltage switching (ZVS) range
Direct synchronous rectifier (SR) control
Light-load efficiency management including:
- Burst mode operation
- Discontinuous conduction mode (DCM), dynamic SR on/off control with programmable threshold
- Programmable adaptive delay
Average- or peak-current mode control with programmable slope compensation and voltage-mode control
Closed-loop soft-start and enable function
Programmable switching frequency up to 1 MHz with bidirectional synchronization
(±3%) cycle-by-cycle current limit protection with hiccup mode support
150-µA start-up current
V_DD undervoltage lockout
Wide temperature range: –40°C to +125°C

Topology	Phase-shifted full bridge
Control mode	Current
Duty cycle (max) (%)	97
Switching frequency (max) (kHz)	1000
Features	Adjustable switching frequency, Current limiting, Enable/Shutdown, Error amplifier, Green mode, Light-load efficiency, Programmable slope compensation, SR logic, Soft start, Soft switching, Synchronization pin, Thermal shutdown
UVLO thresholds on/off (V)	7.3/6.7
Operating temperature range (°C)	-40 to 125
Rating	Automotive
Gate drive (typ) (A)	0.2
Vin (max) (V)	17
