Описание

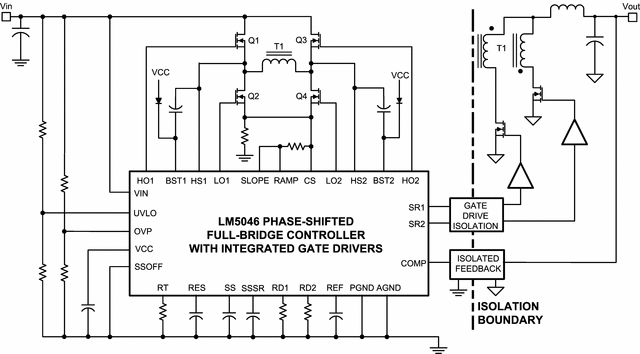

The LM5046 PWM controller contains all of the features necessary to implement a phase-shifted full-bridge topology power converter using either current mode or voltage mode control. This device is intended to operate on the primary side of an isolated DC-DC converter with input voltage up to 100 V. This highly integrated controller-driver provides dual 2-A high- and low-side gate drivers for the four external bridge MOSFETs, plus control signals for the secondary-side synchronous rectifier MOSFETs. External resistors program the dead-time to enable zero-volt switching of the primary FETs. Intelligent startup of the synchronous rectifiers allows monotonic turnon of the power converter even with prebias load conditions. Additional features include cycle-by-cycle current limiting, hiccup mode restart, programmable soft-start, synchronous rectifier soft-start, and a 2-MHz capable oscillator with synchronization capability and thermal shutdown.

Highest Integration Controller for Small
Form Factor, High-Density Power Converters
High-Voltage Start-Up Regulator
Intelligent Sync Rectifier Start-Up Allows
Linear Turn-on into Prebiased Loads
Synchronous Rectifiers Disabled in UVLO Mode
and Hiccup Mode
Two Independent, Programmable Dead-Time
Adjustments to Enable Zero-Volt Switching
Four High-Current 2-A Bridge Gate Drivers
Wide-Bandwidth Opto-Coupler Interface
Configurable for Either Current Mode or Voltage
Mode Control
Dual-Mode Overcurrent Protection
Resistor Programmed 2-MHz Oscillator
Programmable Line UVLO and OVP

Topology	Phase-shifted full bridge
Control mode	Current
Duty cycle (max) (%)	100
Switching frequency (max) (kHz)	1000
Features	Adjustable switching frequency, Current limiting, Error amplifier, High-voltage startup, Integrated gate drivers, SR logic, Soft start, Soft switching
UVLO thresholds on/off (V)	Programmable/1.25V
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Gate drive (typ) (A)	1.5, 2
Vin (max) (V)	14
